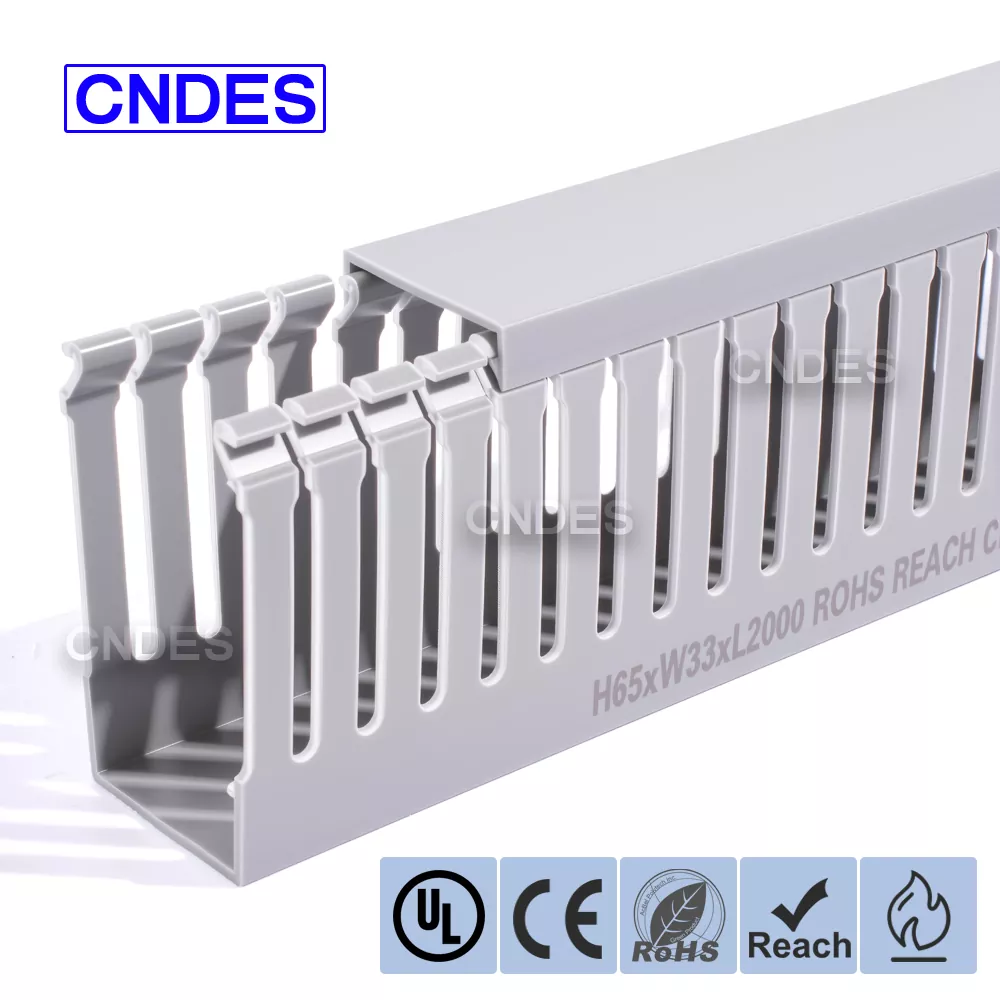

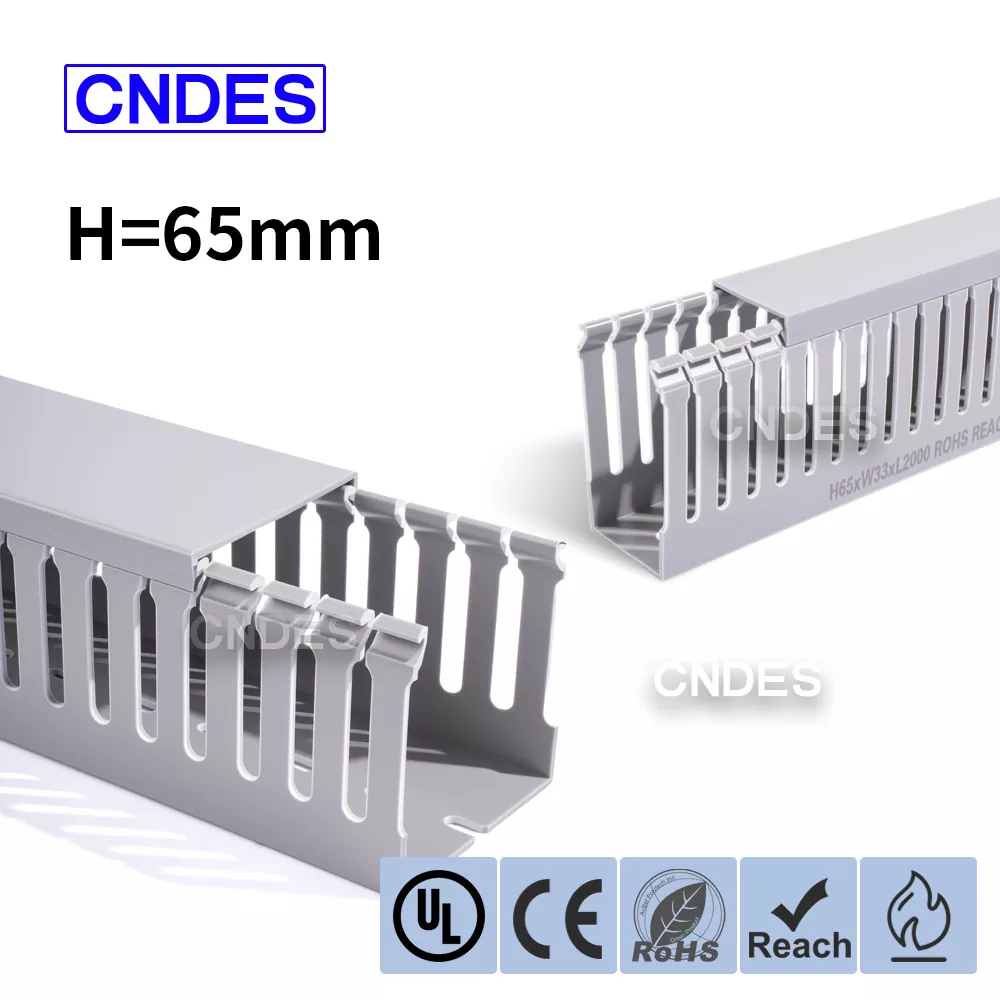

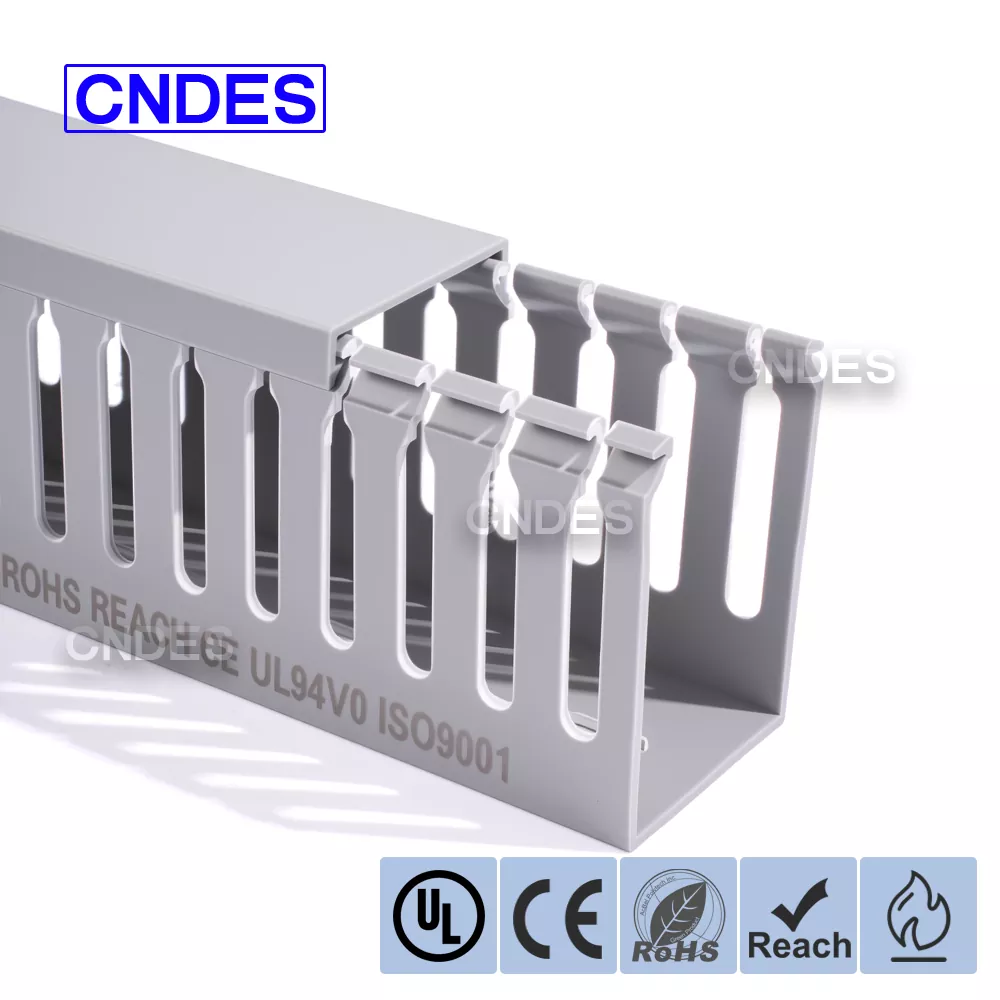

CNDES is a PVC cable wiring duct source factory with 24 years of experience. The Customized 65mm Height Slotted PVC Industrial Wiring Duct is an ideal solution for organizing and protecting wiring in high-density environments such as industrial control panels, automation equipment, and machinery installations. With a height of 65mm, it offers ample space to accommodate larger cable bundles while ensuring optimal protection from environmental factors like dust, moisture, and mechanical damage.
Material: PVC
Certificates: UL, CE, RoHS, REACH
Flame-retardant rating: UL94-V0
Color: Gray or other custom colors
With Bottom Mounting Holes
Standard Length: 2M (Custom lengths are available)
Operating temperature: -40°C up to 70°C
|
H*W mm |
slot mm |
thickness mm |
Package/M |
|

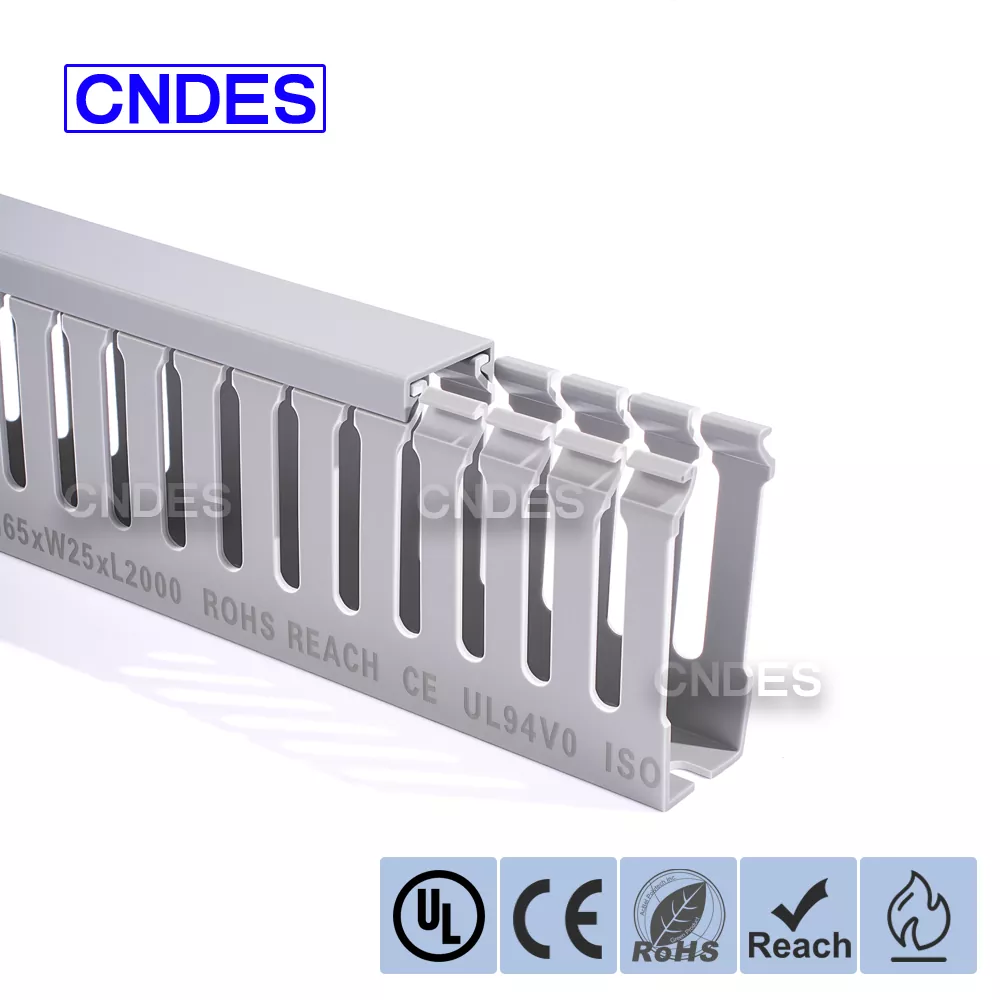

65*25 |
6/8,4/6 |
1.6 |
100 |
|

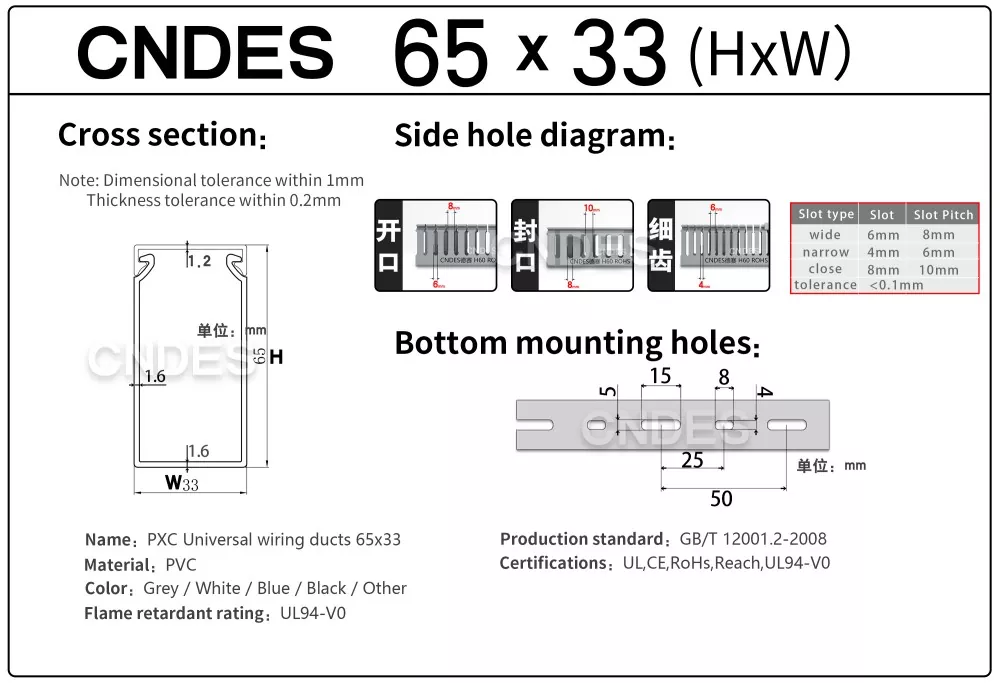

65*33 |
6/8,4/6 |
1.6 |
100 |
|

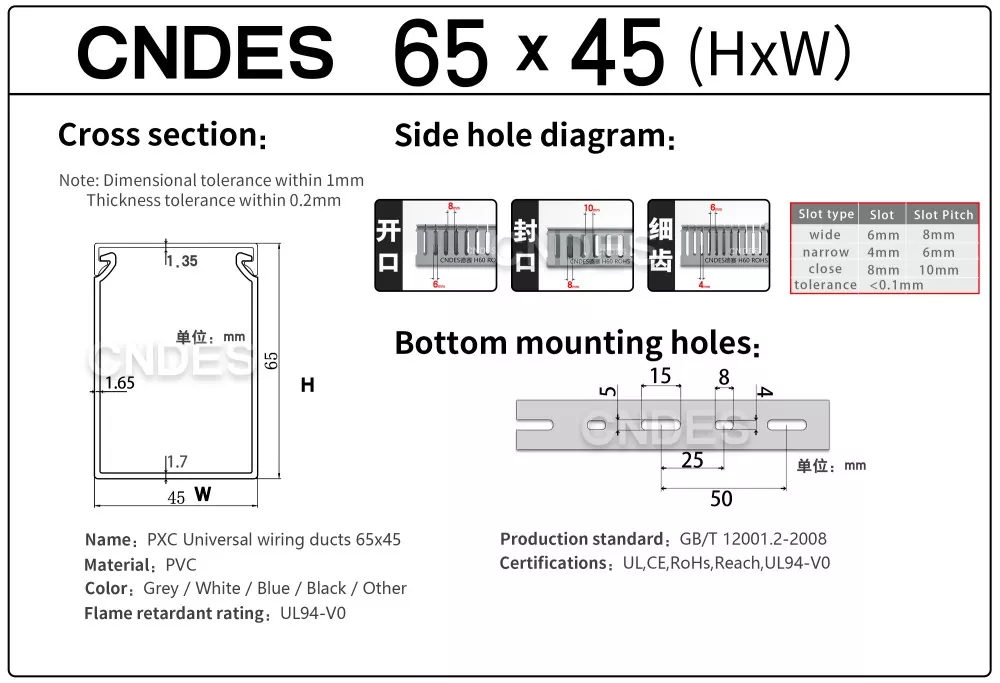

65*45 |
6/8,4/6 |
1.65 |
80 |
|

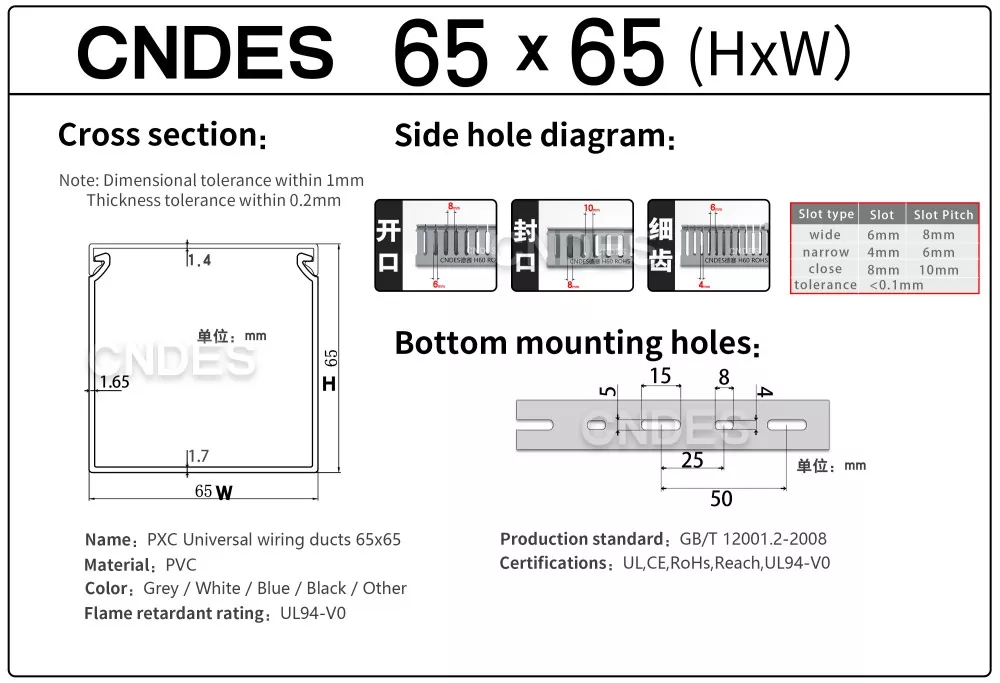

65*65 |
6/8,4/6 |
1.65 |
60 |

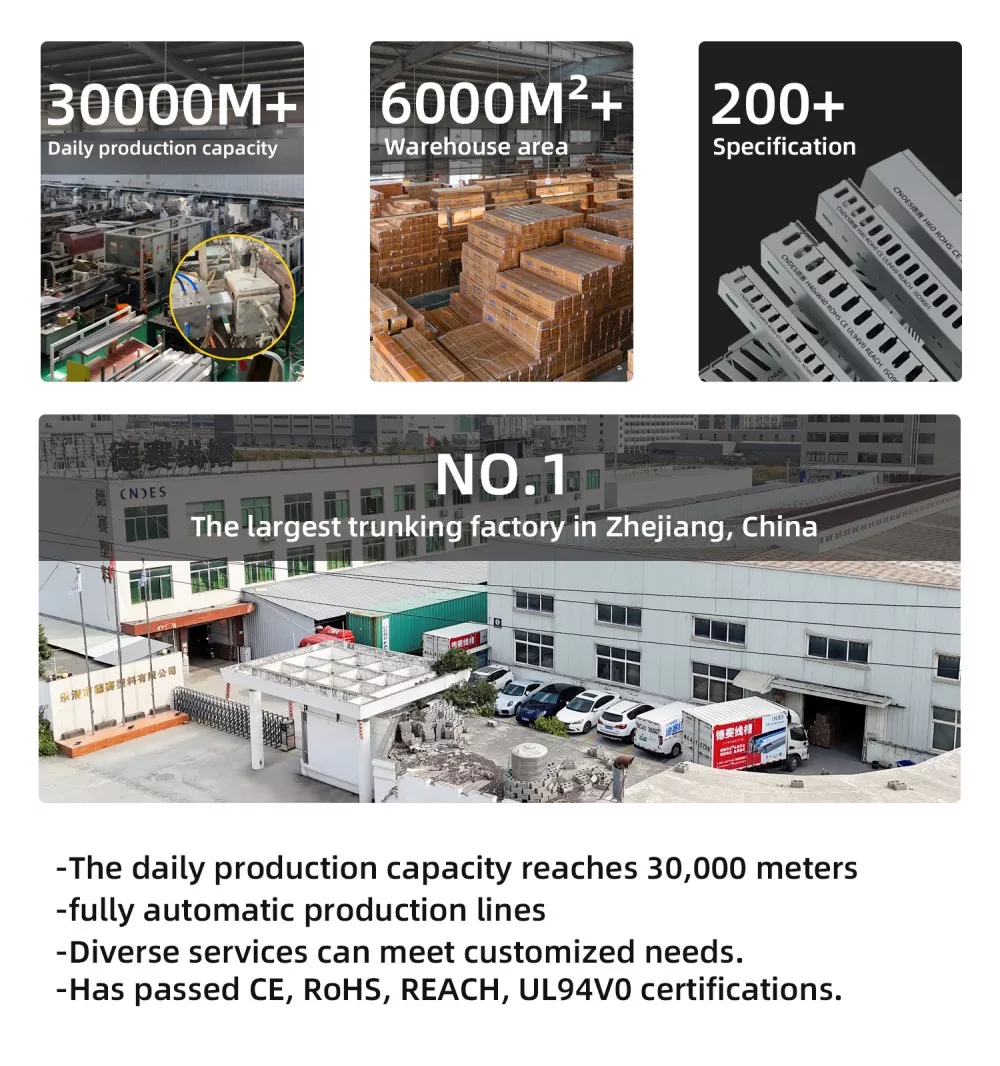

As a professional PVC wiring duct manufacturer, CNDES has a stable supply with 13 production lines, a daily output of up to 30000 meters, and a 6000 square meter warehouse inventory of over 200 specifications. Our quality inspection system strictly controls products: from raw material screening and real-time production monitoring to final batch sampling, ensuring that the factory defect rate of products is below 0.5% and always reliable.
|
Comparison Dimensions |
CNDES wiring ducts |
Other competitors |
|
Formula control |
New materials and self-developed environmentally friendly formula |
Recycled materials |
|
Color difference control |
There is almost no color difference between different batches. |
There may be color differences between different batches (even the lid and the bottom groove may be different colors). |
|
Workmanship control |
Square shape, burr-free; precise drilling; dimensional error controlled within 0.2mm. |
The shape is bent; the drilling positioning is incorrect; and the error is large. |
|
Impact resistance |
Bending 360 degrees repeatedly without breaking |
It breaks after being bent 180 degrees 1-3 times. |
|
Quality control standards |
Strict quality inspection |
Lax quality inspection standards |
|
Supply capacity |
30,000 meters per day |
Less than 10,000 meters |
1. Industrial Control Panels
Effectively organizes power and signal cables in environments with high requirements for neatness and ease of use, such as control cabinets, PLC systems, and distribution panels.
2. Automation Systems
Ideal for managing complex wiring in automated machinery, sensors, actuators, and control equipment. Ensures all cables are safely and orderly stored and easily traced.
3. Machinery Cabling
The 65mm height design allows for safe routing of large bundles of cables along machines and production lines, ensuring smooth equipment operation.
4. OEM Electrical Components
The Quality 65mm Height Slotted PVC Industrial Wiring Duct is perfectly suited for standardizing wiring layouts in custom industrial panels or enclosures.
CNDES is serious and professional in making cable ducts! If you have any questions, feel free to consult at any time!
