Our 100×80 Flexible Slotted PVC Wiring Duct offers ample internal space and a flexible slotted structure, allowing for easy cable routing, adjustments, or expansions in the field. It is ideal for applications where space utilization and flexibility are critical, such as control cabinets, industrial panels, automation systems, and electrical enclosures.
100×80 Flexible Slotted PVC Wiring Duct With a 100 mm width and 80 mm height, this wiring duct is ideal for:
With a 100 mm width and 80 mm height, this wiring duct is ideal for:
High-density cable layouts
Mixed power and control wiring
Projects requiring future expansion
The generous internal capacity reduces overcrowding, improves airflow, and helps maintain an organized wiring system even as cables increase over time.
|
Material |
PVC |
|
Certification |
UL, CE, RoHS, REACH |
|
Installation Temperture |
-40°C up to70°C |
|
Color |
Gray or other custom colors |
|
Perforated bottom |
With Bottom Mounting Holes |
|
Package |
36m |
|
thickness |
2.0mm |
|
Side hole |
Wide; narrow; solid wall; close slot |

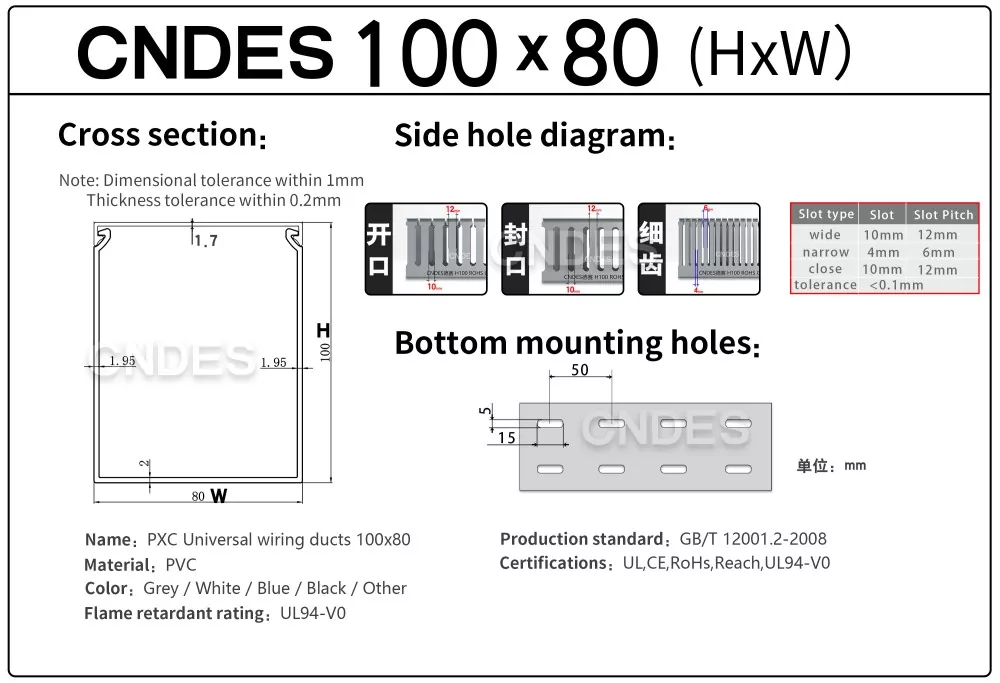

Dimensions: 100mm (height)* 80mm (width)

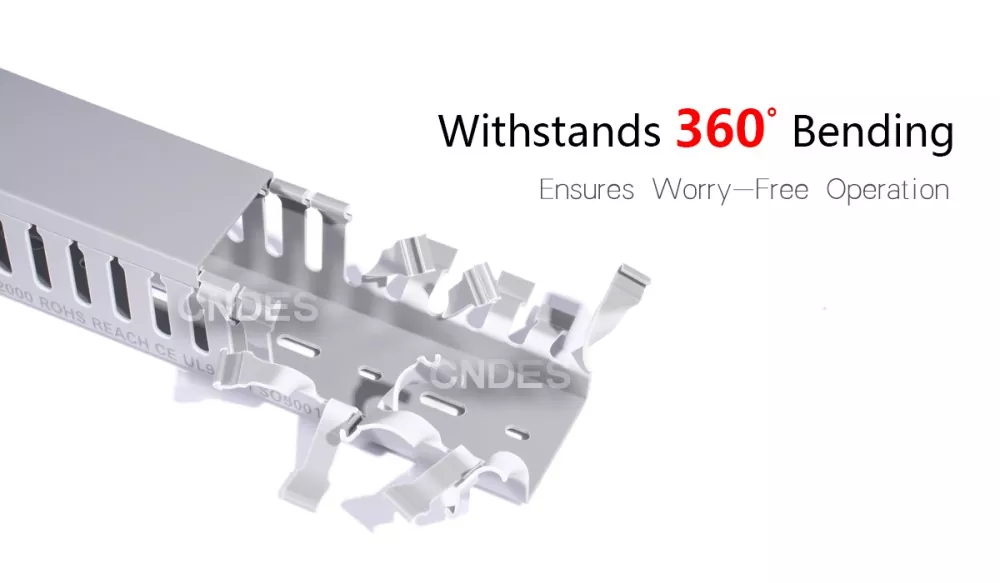

Flexible Construction: Specially formulated PVC enables bending without breaking.
Tool-Free Snap Cover: Quick access for cable changes.
Precision Slotting: Uniformly spaced slots allow cable exit at any position.

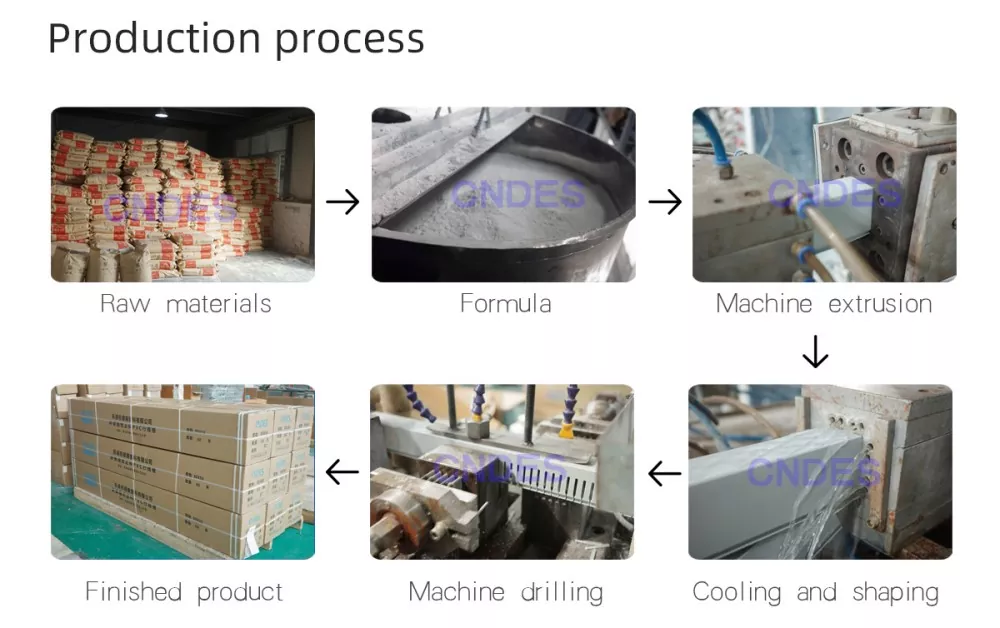

Manufacturing Standards:
-ISO 9001 certified production
-Batch-tested for flexibility and durability
-Precise dimensions
Contact our engineering team today to discuss your specific needs. We offer comprehensive solutions for cable routing applications. Please feel free to contact us anytime if you would like to learn more about our 100×80 Flexible Slotted PVC Wiring Duct.
CNDES – Flexible Solutions for Complex Challenges
