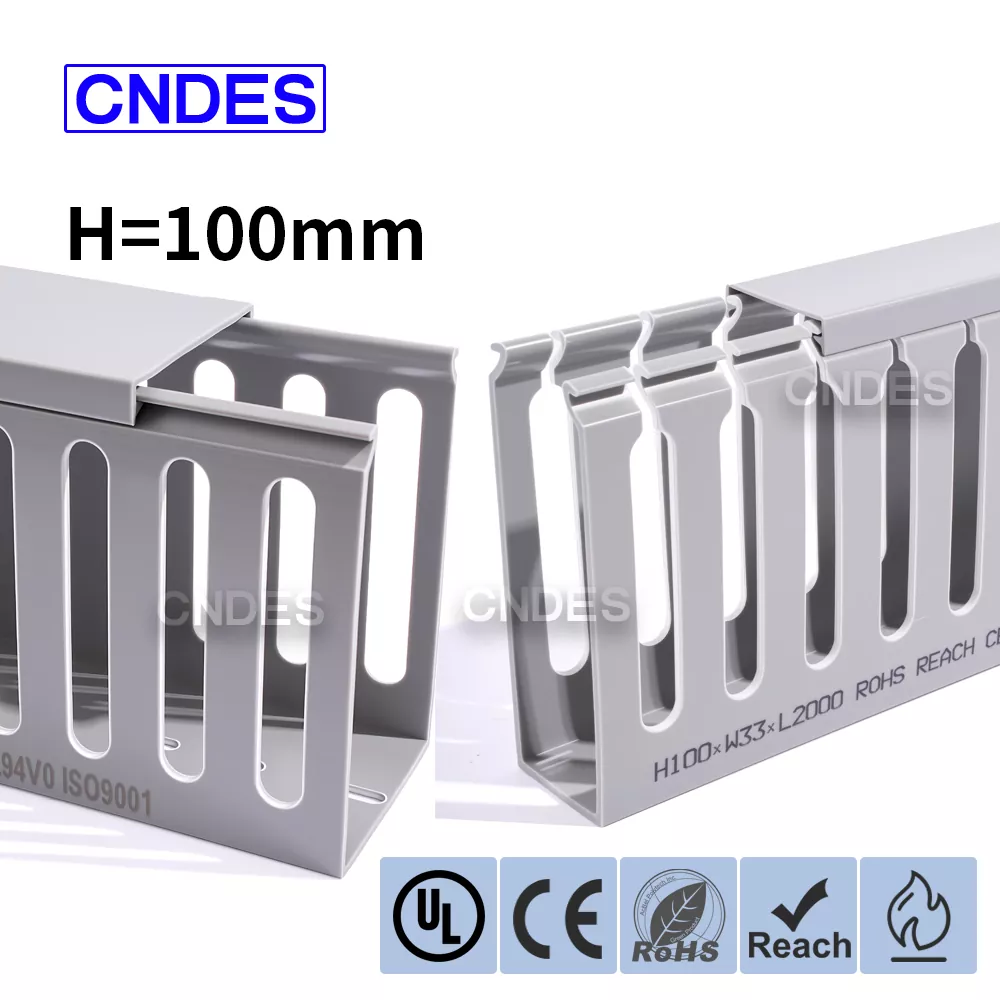

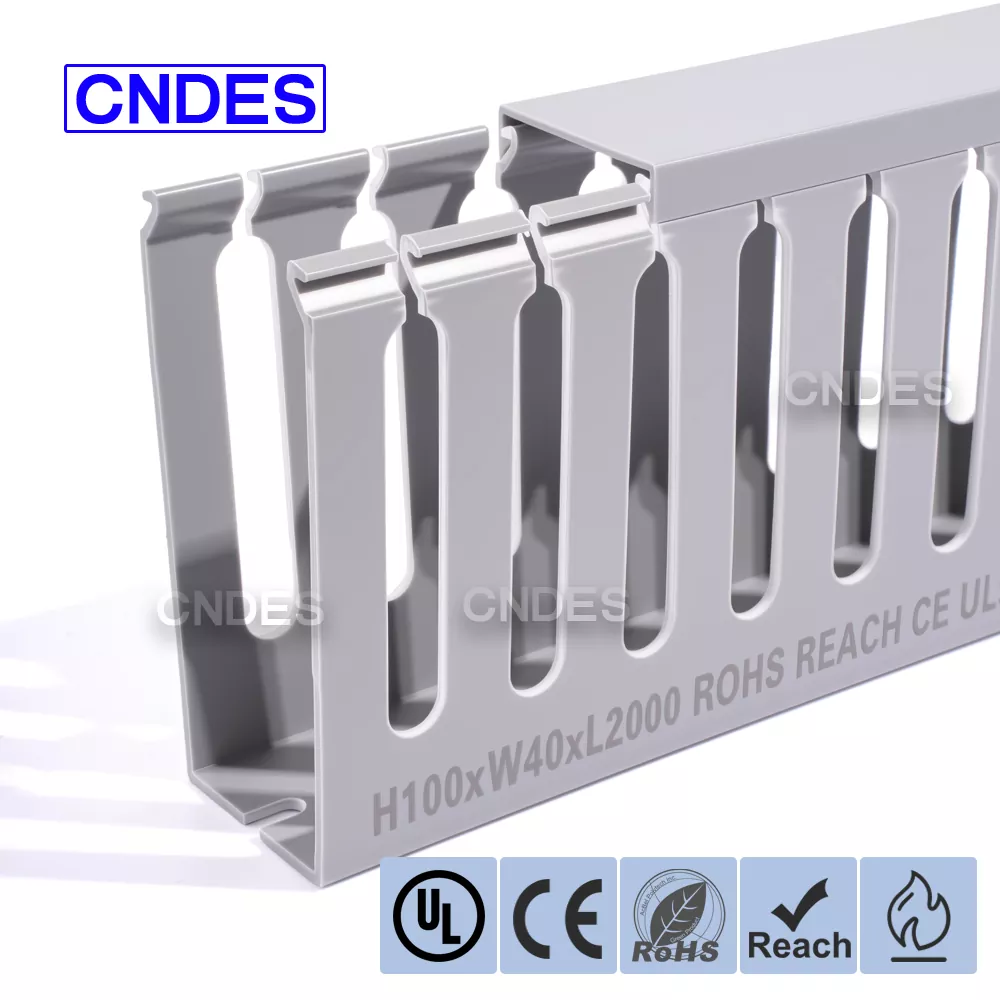

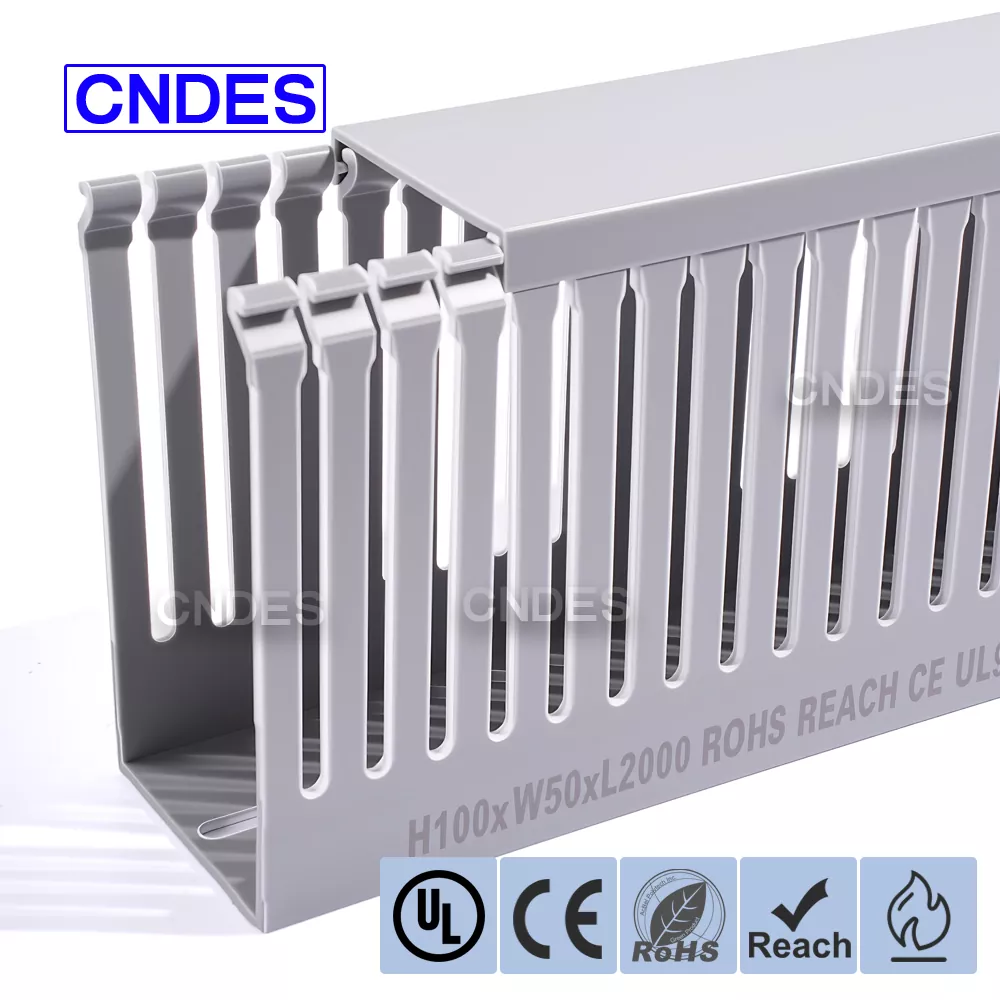

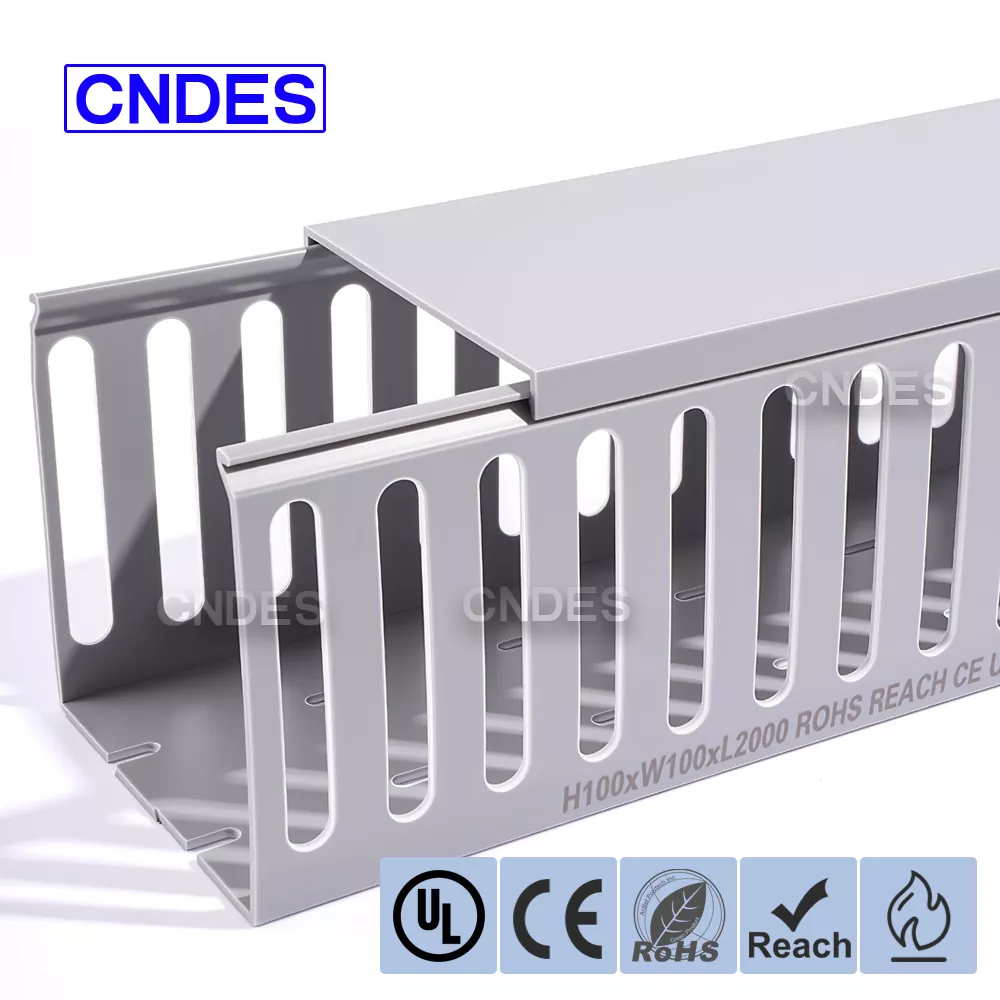

100mm Height Open Slot PVC Enclosure Wiring Duct

CNDES is a professional cable tray manufacturer with 24 years of experience, specializing in the production of Customized 100mm Height Open Slot PVC Enclosure Wiring Ducts. Here, we will introduce our 100mm high cable tray series products.

Material: PVC

Certificates: UL, CE, RoHS, REACH

Flame-retardant rating: UL94-V0

Color: Gray or other custom colors

With Bottom Mounting Holes

Standard Length: 2M (Custom lengths are available)

Operating temperature: -40°C up to 70°C

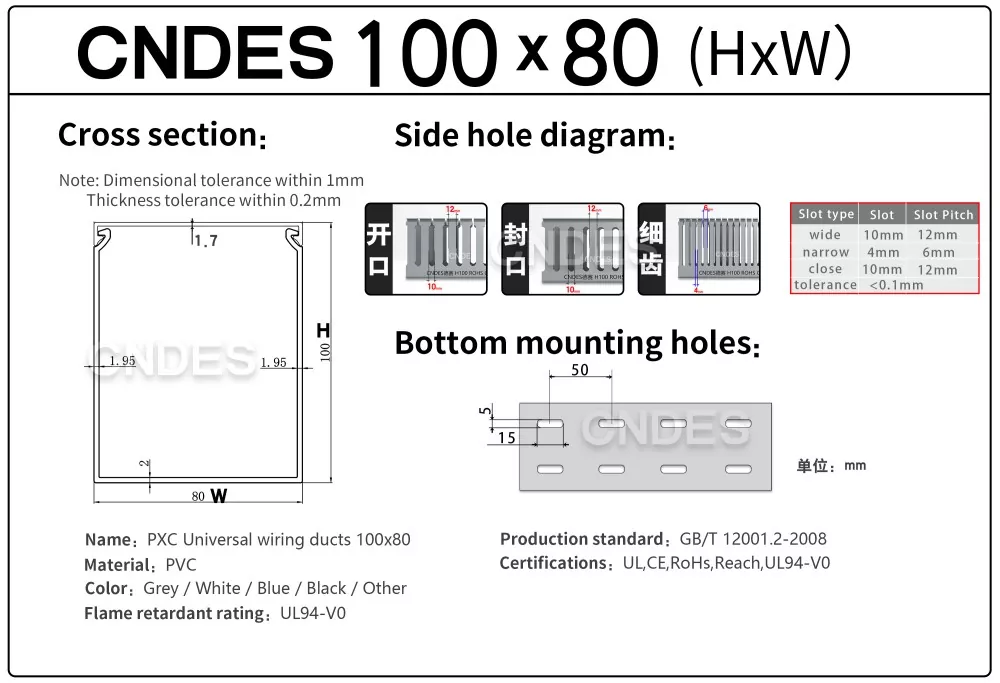

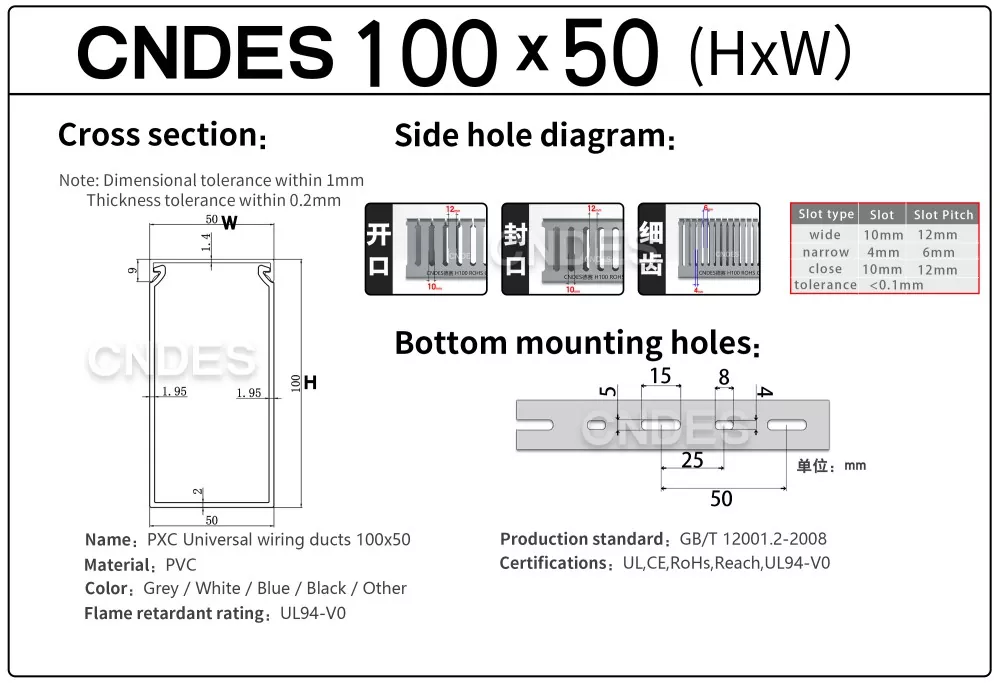

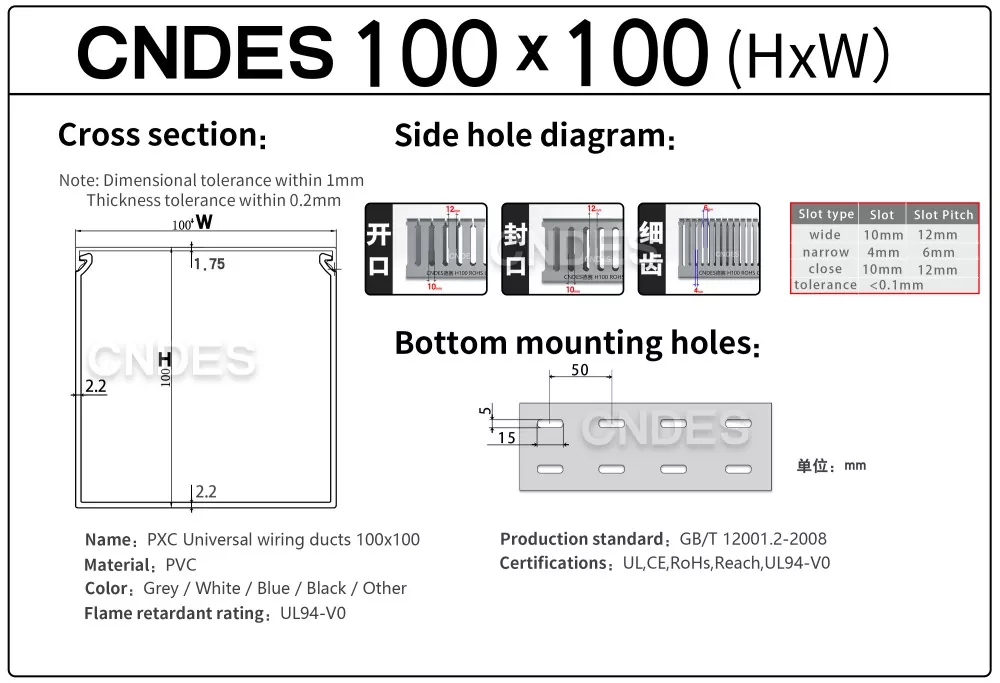

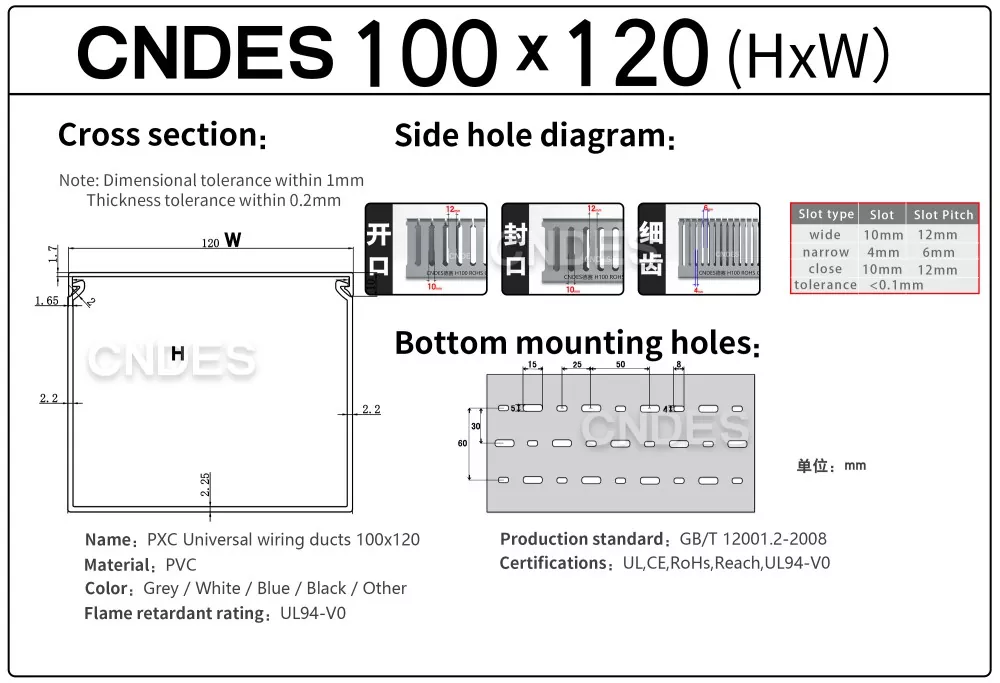

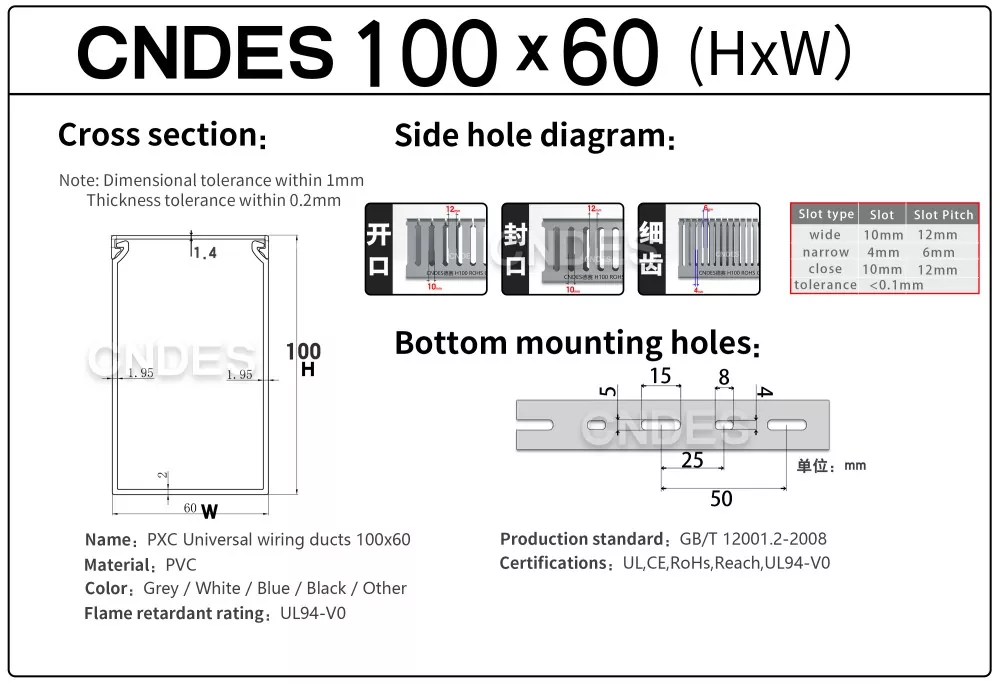

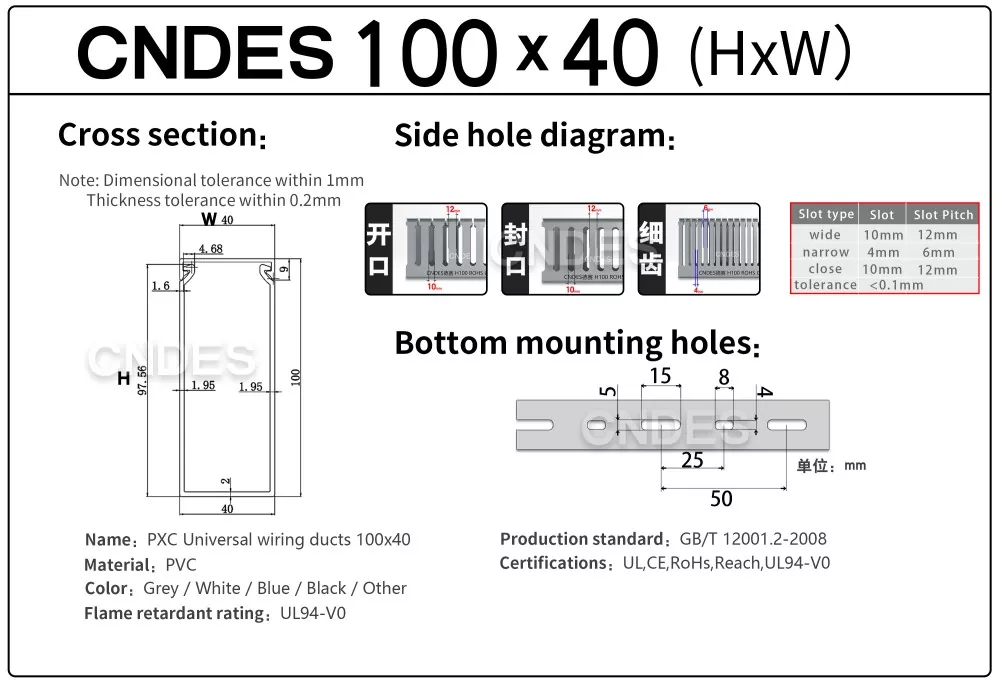

Specification Sheet

Introduction

The core advantages of the Slotted PVC Enclosure Wiring Duct can be highlighted across material performance, safety, durability, and application adaptability, providing an efficient, reliable, and cost-effective solution for electrical cable management.

1. Superior Material Properties Ensure Safety and Durability

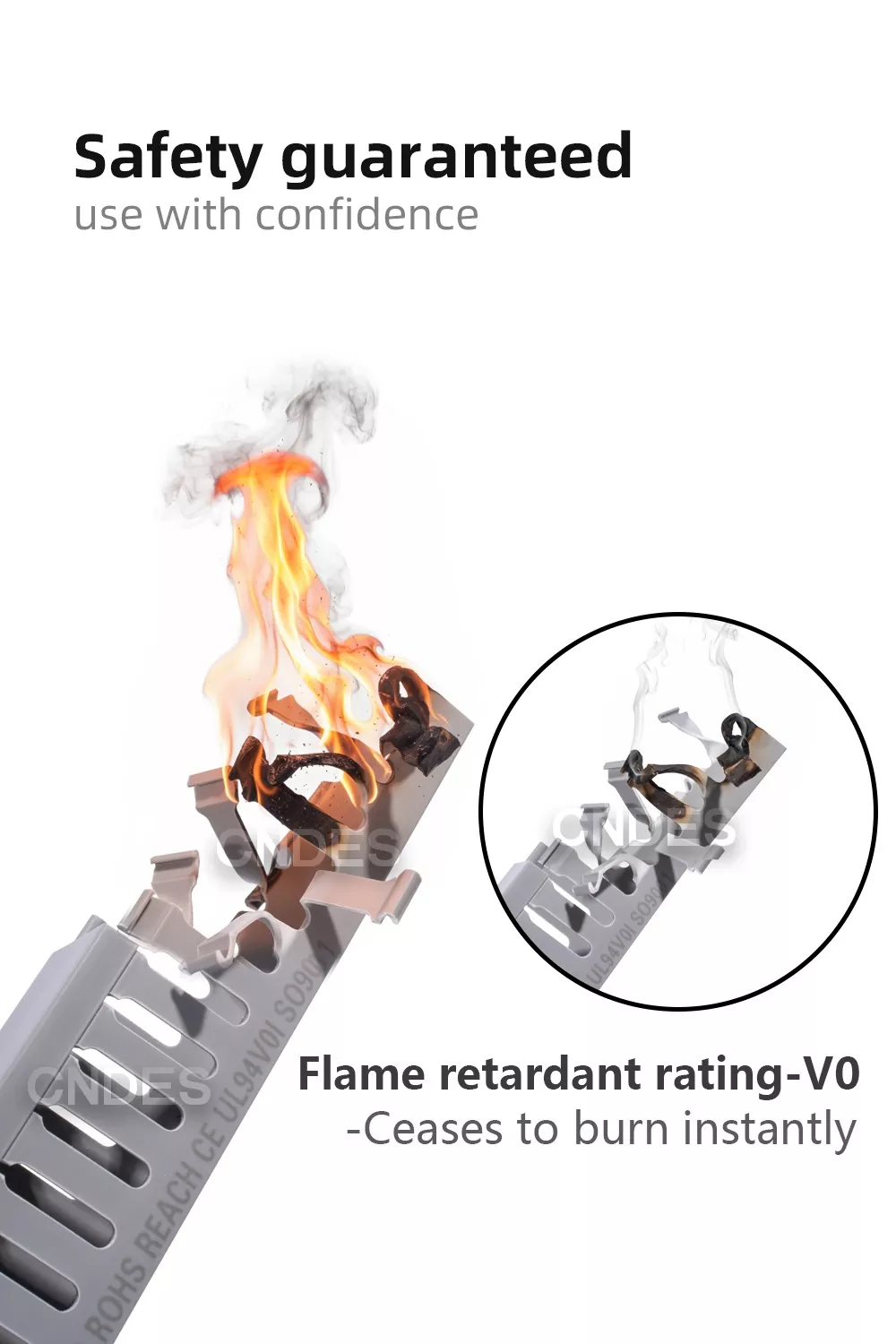

The Quality 100mm Height Open Slot PVC Enclosure Wiring Duct is manufactured from UL94 V-0 flame-retardant PVC material, which is self-extinguishing once the flame source is removed, effectively slowing fire propagation and improving overall electrical safety. Its excellent insulation performance helps prevent current leakage and short-circuit risks, ensuring stable operation in electrical enclosures and control panels.

2. Flexible Slot Design for Enhanced Cabling Efficiency and Maintainability

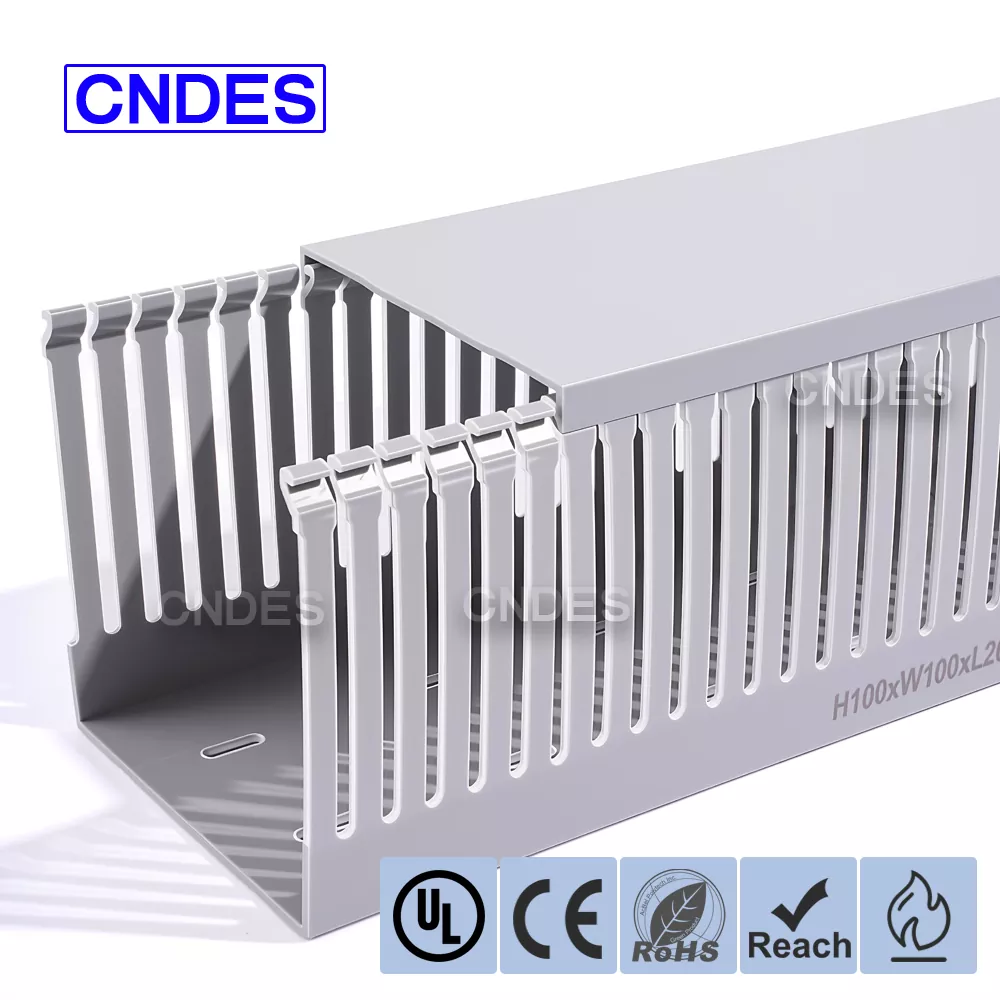

Regularly spaced slots on both sides of the channel allow cables to be routed from any position without damaging the channel structure, reducing redundant cabling. Certain models feature removable covers or segmented designs for rapid installation and future maintenance. For instance, in data centers, cable tray positions can be easily adjusted to accommodate new equipment. Slotted PVC Enclosure Wiring Duct's narrow finger design (e.g., finger width 6-7mm) secures cables against vibration-induced loosening, making it particularly suitable for high-vibration environments like industrial robots and automated production lines.

3. Diverse Sizes and Customization Options to Meet Individual Needs

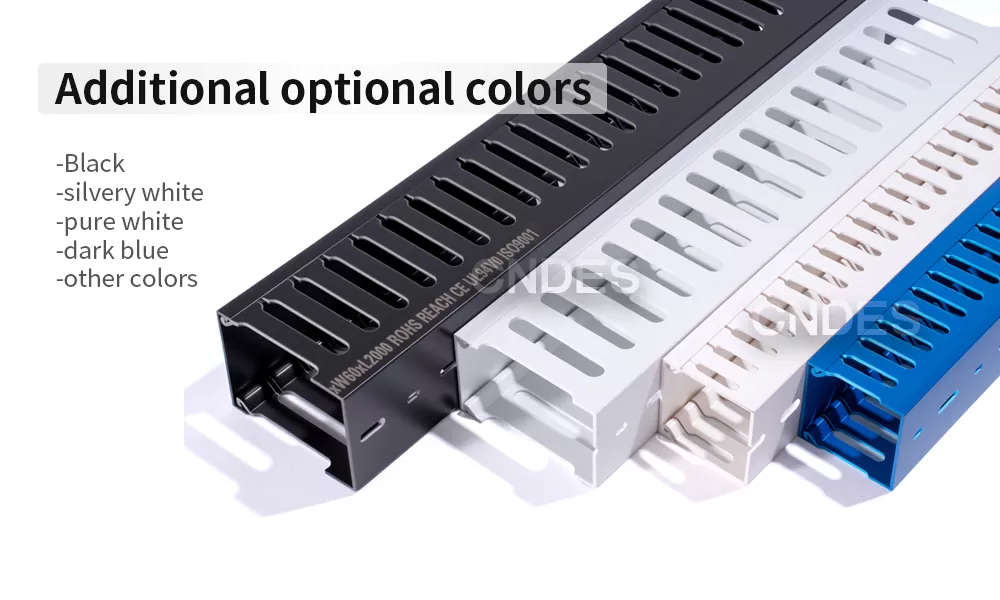

Offering a full range of sizes from ultra-compact (20×15mm) to large (100×120mm), accommodating varying cable quantities and diameters—such as the 40×60mm size ideal for server cabinet cabling. Available in standard colors like white, gray, and black, or customized with corporate logos and line numbers for easy categorization and enhanced cable management. Slotted PVC Enclosure Wiring Duct includes a comprehensive range of accessories, including matching connectors (such as U-shaped clips), cover plates, and brackets. Supports both screw-fastening and clip-on installation, compatible with multiple mounting methods to simplify construction processes.

4. Easy and Efficient Installation, Reducing Overall Costs

Made from lightweight PVC material, the High-Performance 100mm Height Open Slot PVC Enclosure Wiring Duct weighs only one-third to one-half of traditional metal cable trays, making handling and installation much easier—especially in elevated installations or confined spaces. The slotted PVC enclosure wiring duct can be quickly cut with a utility knife or hand saw, eliminating the need for specialized tools and significantly reducing installation time and labor costs.

With its competitive material pricing and high installation efficiency, the Slot PVC Enclosure Wiring Duct helps reduce total project costs by approximately 30%–50% compared to metal cable trays. This makes it a cost-effective choice for large-scale applications such as factory production lines, electrical control cabinets, and communication base stations.

CNDES is committed to becoming your reliable partner for wire duct supply! If you have any other questions, feel free to contact！
