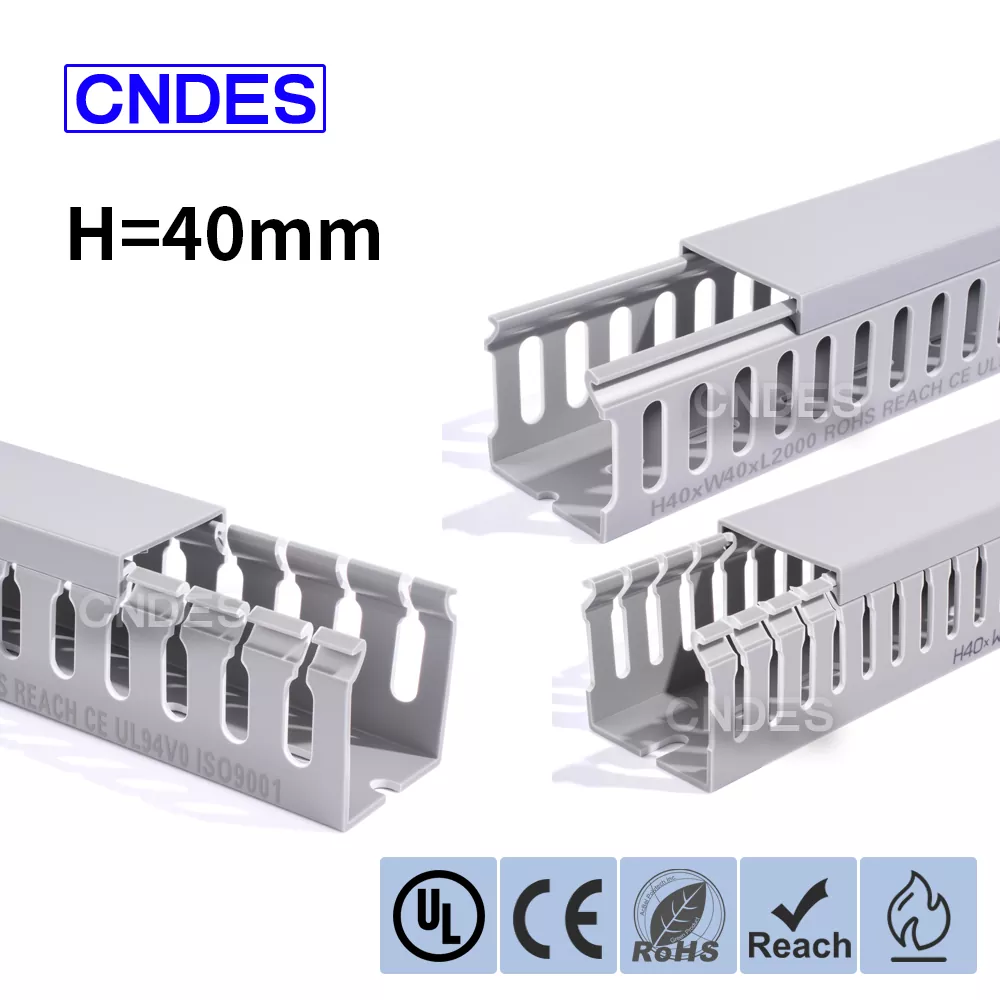

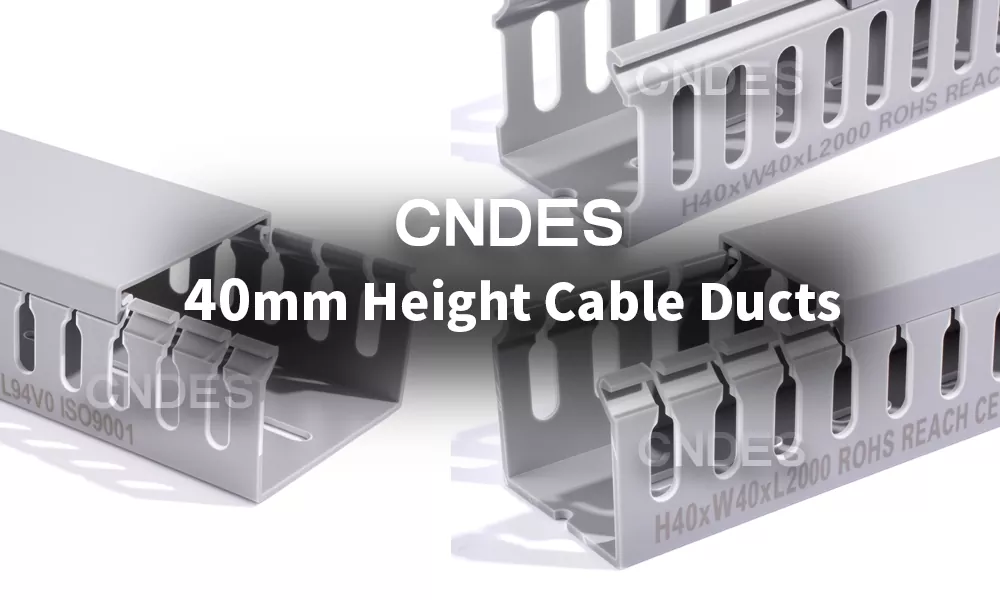

CNDES is Leading Slotted PVC Wiring Raceway Duct manufacturers & suppliers. Here we will introduce our 40mm-height cable trays, including 40*25, 40*30, 40*35, 40*40, and 40*60.
With its slotted design, this duct allows for easy cable insertion, maintenance, and future upgrades, making it a highly flexible and practical choice for various applications. The Customized 40mm Height Slotted PVC Wiring Raceway Duct is constructed from high-quality, flame-retardant PVC, ensuring both durability and safety in even the most demanding environments.
-Material: PVC
-Certificates: UL, CE, RoHS, REACH
-Flame-retardant rating: UL94-V0
-Color: Gray or other custom colors
-With Bottom Mounting Holes
-Standard Length: 2M (Custom lengths are available)
-Operating temperature: -40°C up to 70°C
-Perforation selection: wide slot, narrow slot, close slot, solid wall.
Sheet
|
H*W mm |
thickness mm |
Package/M |
|

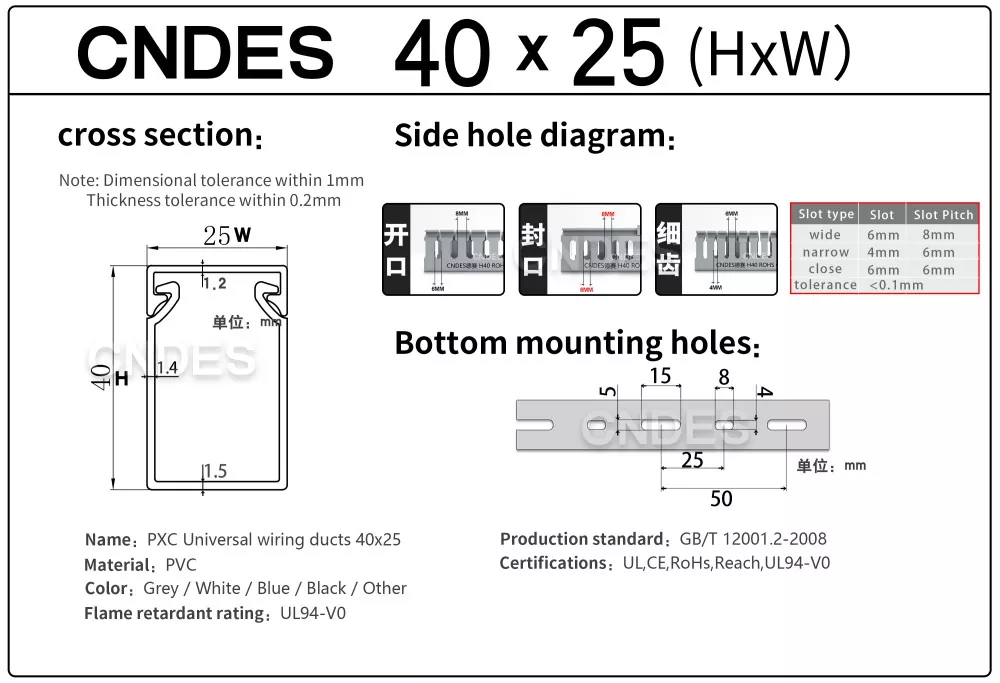

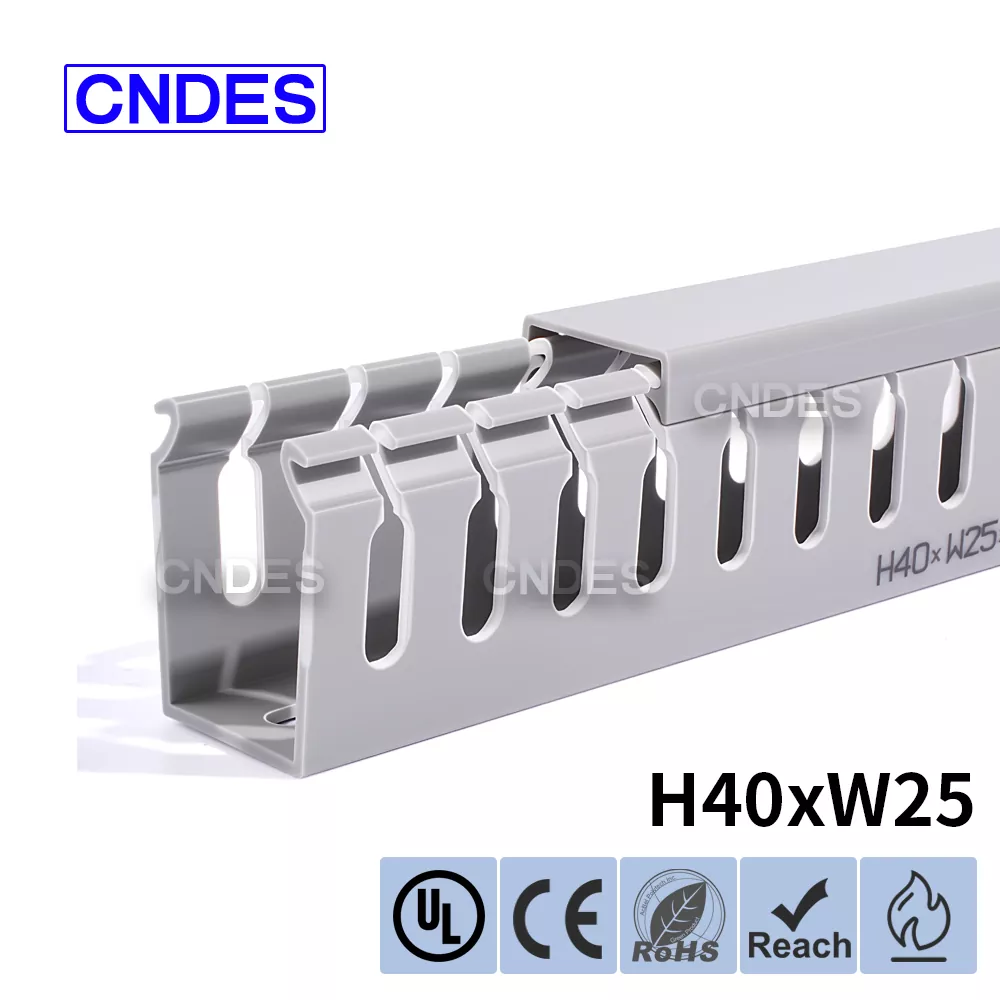

40*25 |
1.45 |
100 |
|

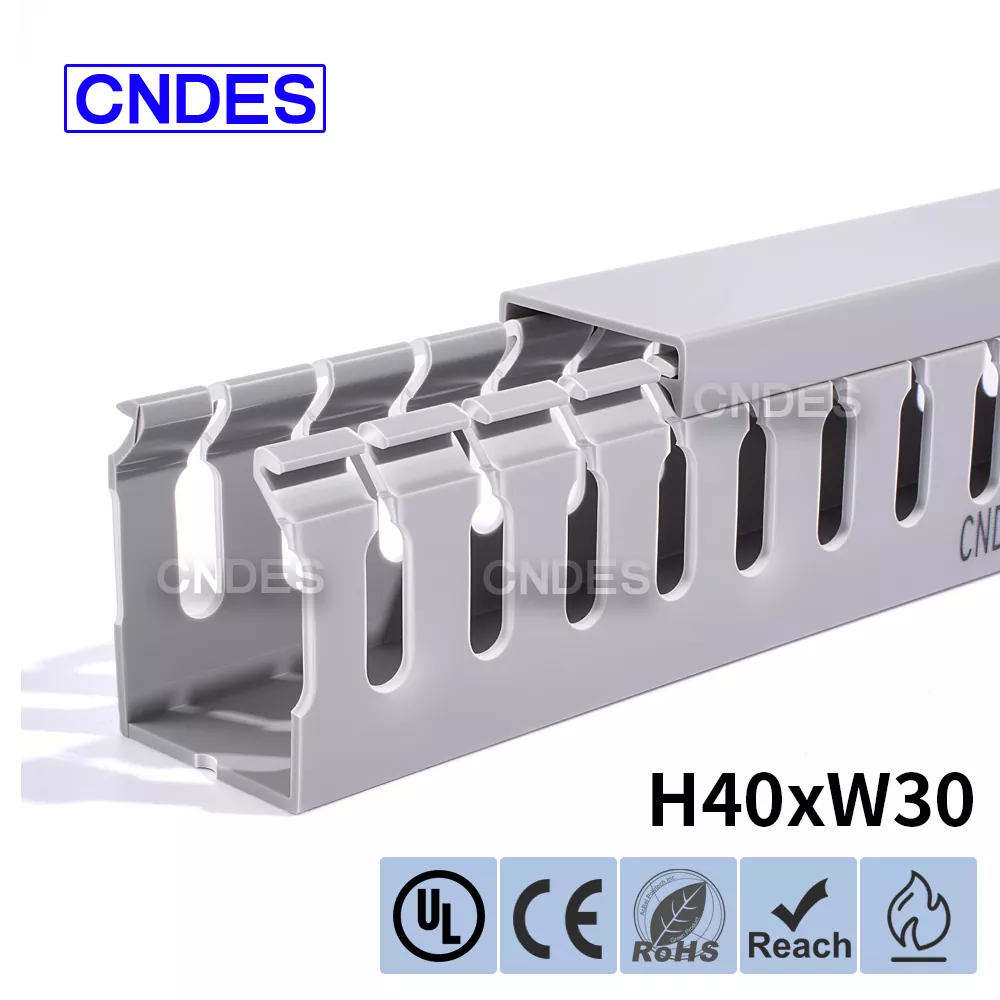

40*30 |
1.45 |
100 |
|

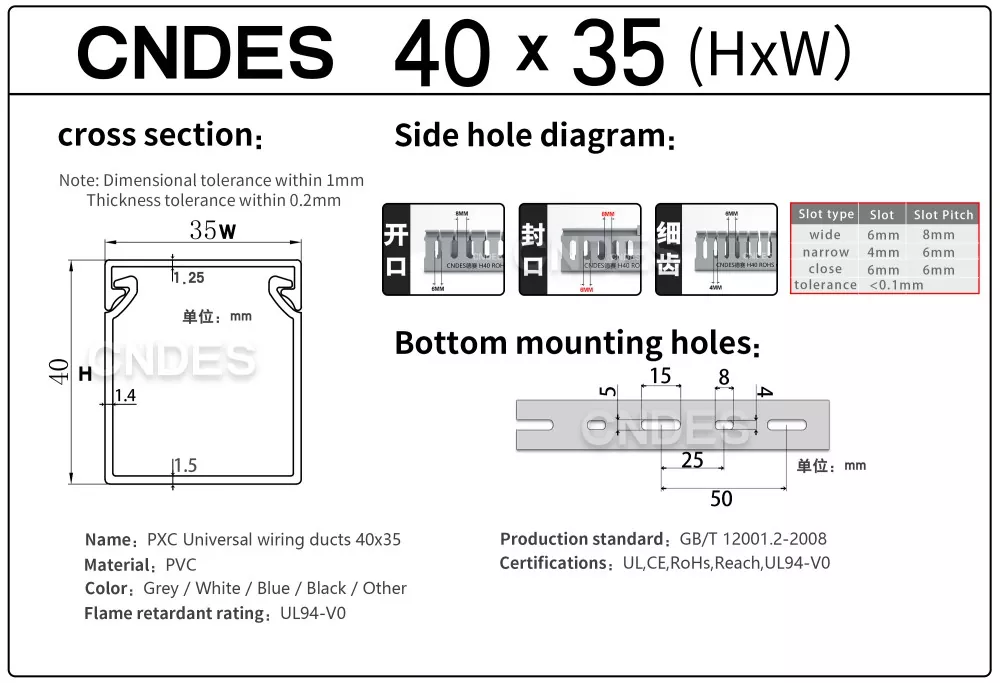

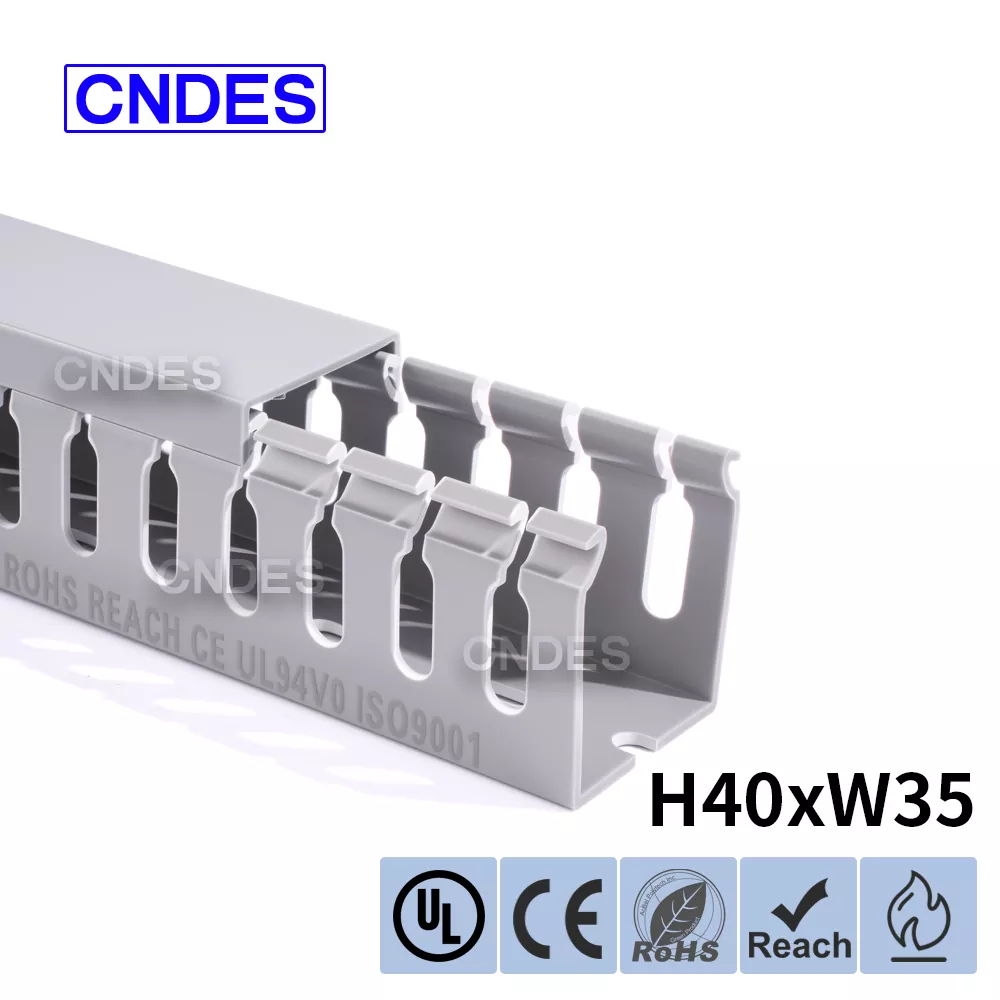

40*35 |
1.45 |
100 |
|

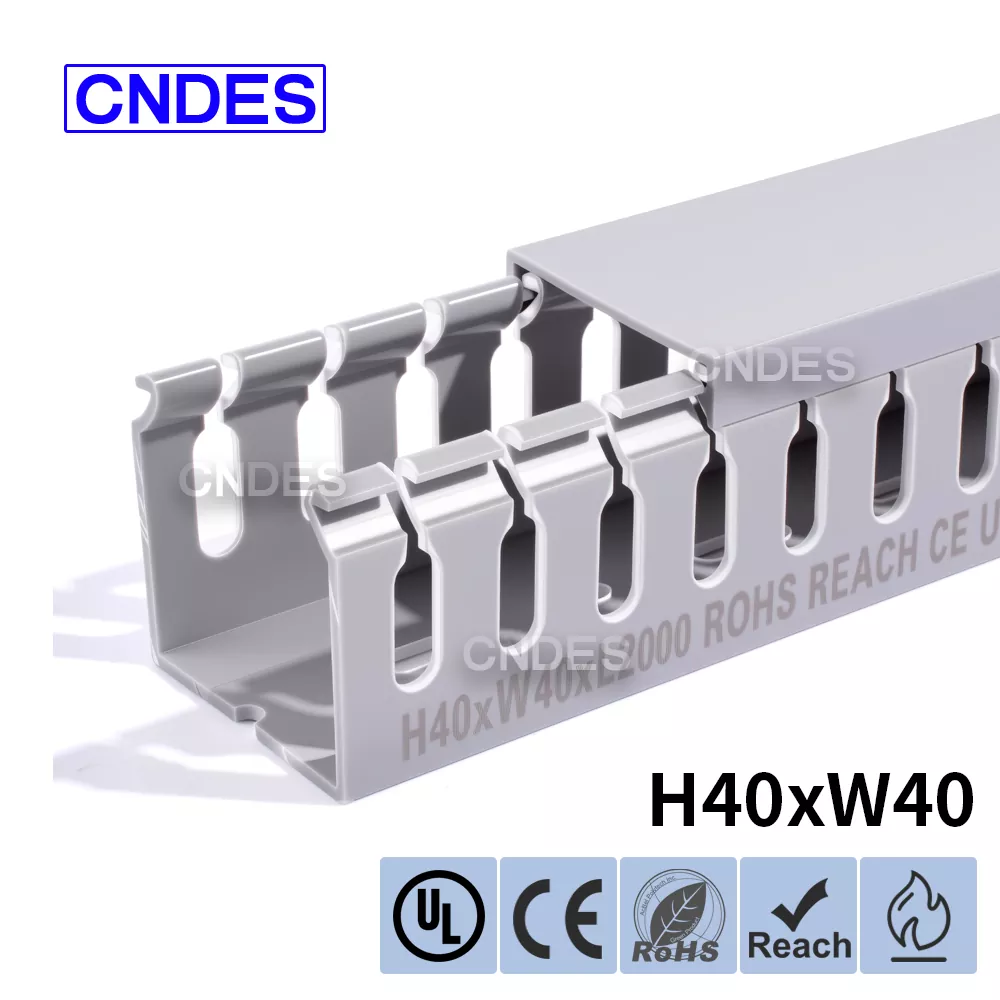

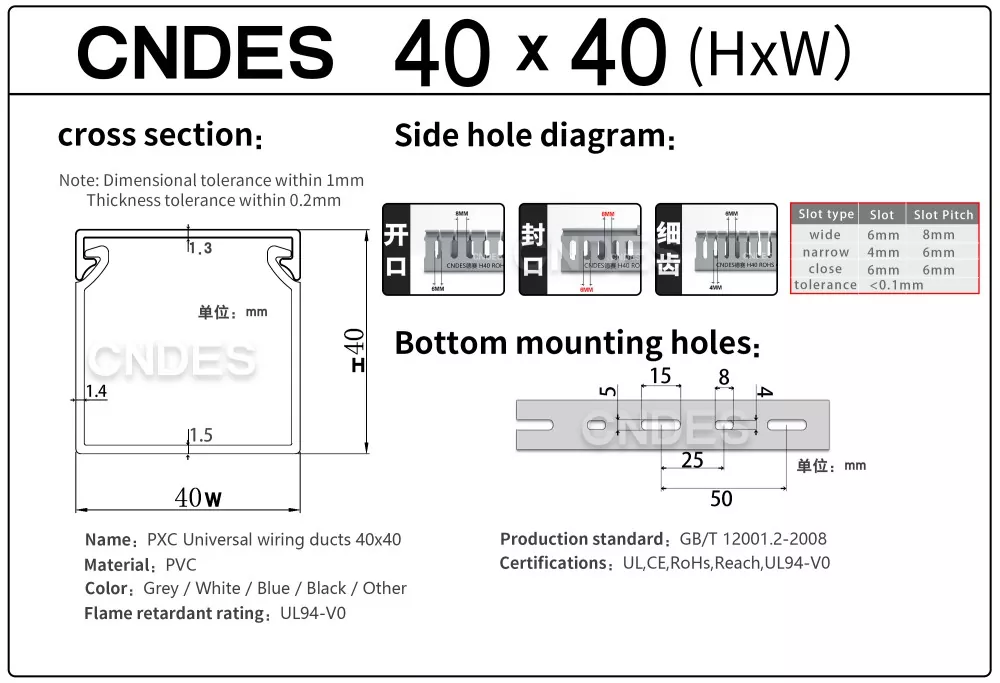

40*40 |
1.5 |
100 |
|

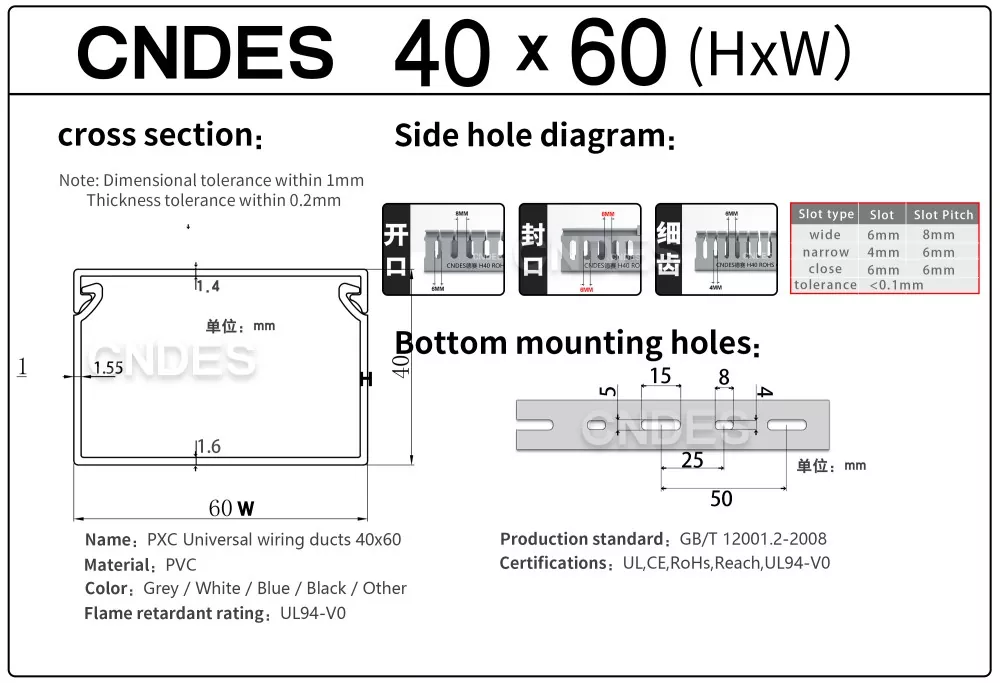

40*60 |
1.6 |
100 |
The specification for the cable tray records some data you want to know.

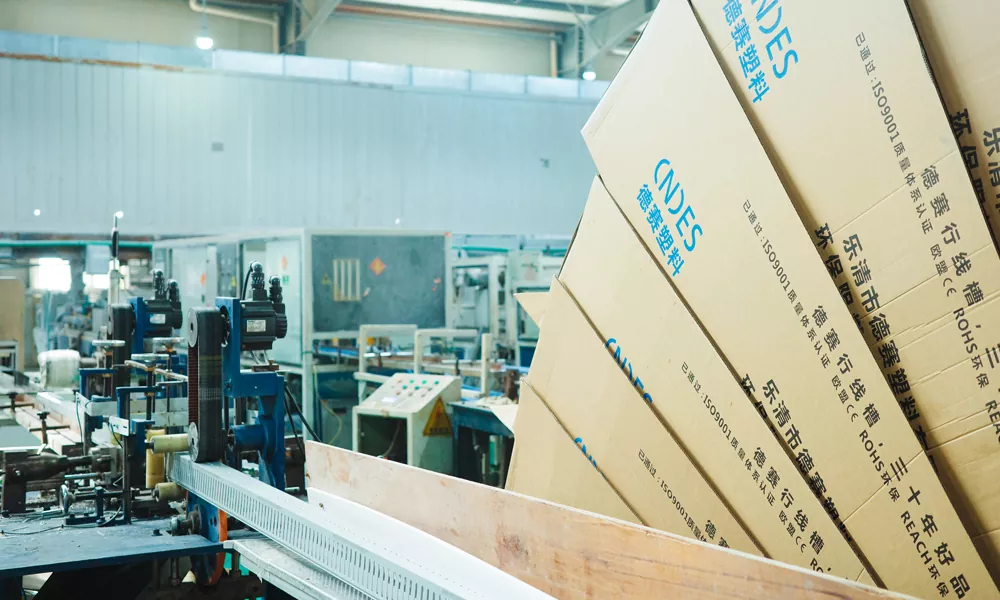

CNDES takes pride in its strong and stable supply capabilities, equipped with advanced production facilities. Our 10-acre factory boasts 13 fully automated production lines with a daily output of 30,000 meters of PVC cable trays. This advanced production configuration ensures fast, stable production and reliable delivery, easily handling even large-volume orders.
We also have a 6,000-square-meter warehouse stocked with a wide variety of PVC cable trays to meet diverse customer needs. With ample inventory, we can ship on the same day, ensuring timely delivery of all models, even urgent orders.
Our 40mm Height Slotted PVC Wiring Raceway Duct is available in two main sizes: Narrow Finger (4mm): Suitable for small-diameter control and signal cables.
Wide Finger (6mm): Designed for power cords, shielded cables, or multi-strand flexible wires.
Both types feature fine/close-pitch grooves to enhance cable retention, reduce the risk of accidental slippage, and achieve safe and orderly cable management.
1. Efficient Cable Management
The Quality 40mm Height Slotted PVC Wiring Raceway Duct features evenly spaced slots (4mm, 8mm) on one or both sides, ensuring secure cable placement. This design prevents vibration, tangling, or crushing, keeping your cables organized. The channel base and cover plate can be custom-cut to standard lengths (e.g., 330mm, 1.83m), minimizing material waste and simplifying future cable maintenance or replacement.
2. Exceptional Safety Protection
Constructed from UL94V-0 flame-retardant PVC, this duct significantly reduces fire risks with self-extinguishing properties. It withstands temperatures up to 85°C and, in select models, up to 550°C for enhanced safety. The 2500V high-voltage insulation prevents electromagnetic interference, while its resistance to acid, alkali, and corrosion makes it ideal for harsh or humid environments. The enclosed structure also keeps out dust and animals, ensuring safe, stable operations.
3. Easy and Flexible Installation
With pre-drilled mounting holes for screw-fastening or snap-in installation, the Slotted PVC Wiring Raceway Duct is quick to install. Use a dedicated pipe cutter (e.g., GIT-302) for clean, burr-free edges. Available in sizes from 20x15mm to 100x100mm, it can be easily embedded in walls, floors, or ceilings to suit various applications.
4. Economical, Eco-Friendly, and Durable
Made from recyclable PVC, this duct offers superior impact and aging resistance, with a lifespan of over 50 years. It is cost-effective and meets green building standards, reducing long-term maintenance costs. The smooth surface and range of colors (gray, white) provide a sleek, professional look for both industrial and high-end interior designs.
5. Wide Range of Applications
The Customized Slotted PVC Wiring Raceway Duct is ideal for environments like control cabinets, production lines, and data centers. It enhances airflow, saves space, and improves cable organization, whether in industrial settings or residential offices. It also hides cables, keeping walls neat and aesthetically pleasing.
If you're looking for a reliable High-Performance 40mm Height Slotted PVC Wiring Raceway Duct for your next project, CNDES is here to help. We offer customization, fast delivery, and factory-direct pricing, making it easy to get the exact product you need.
Want to know more? Welcome to contact us！
