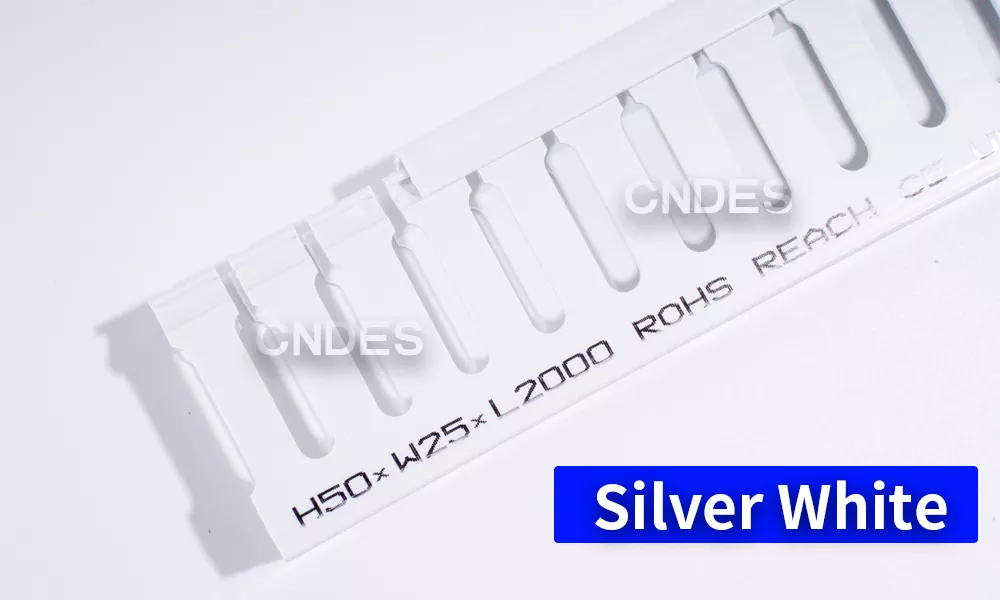

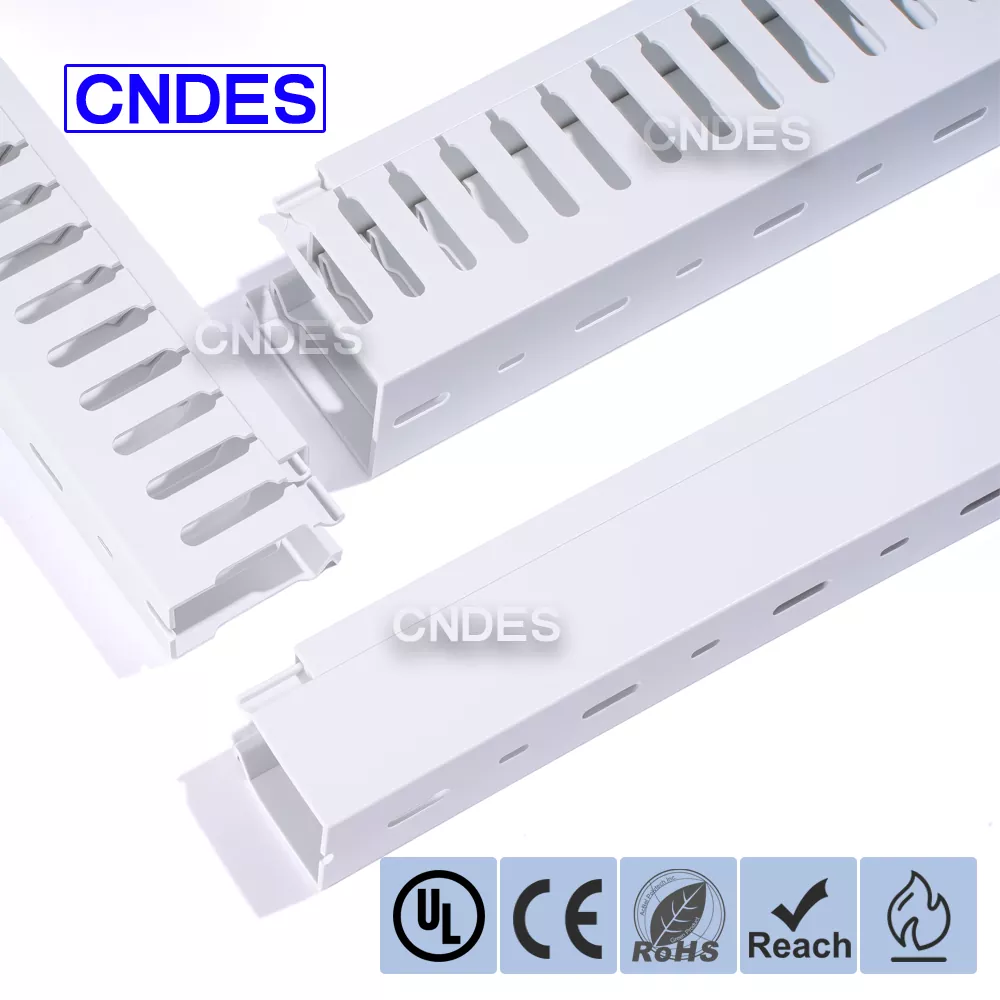

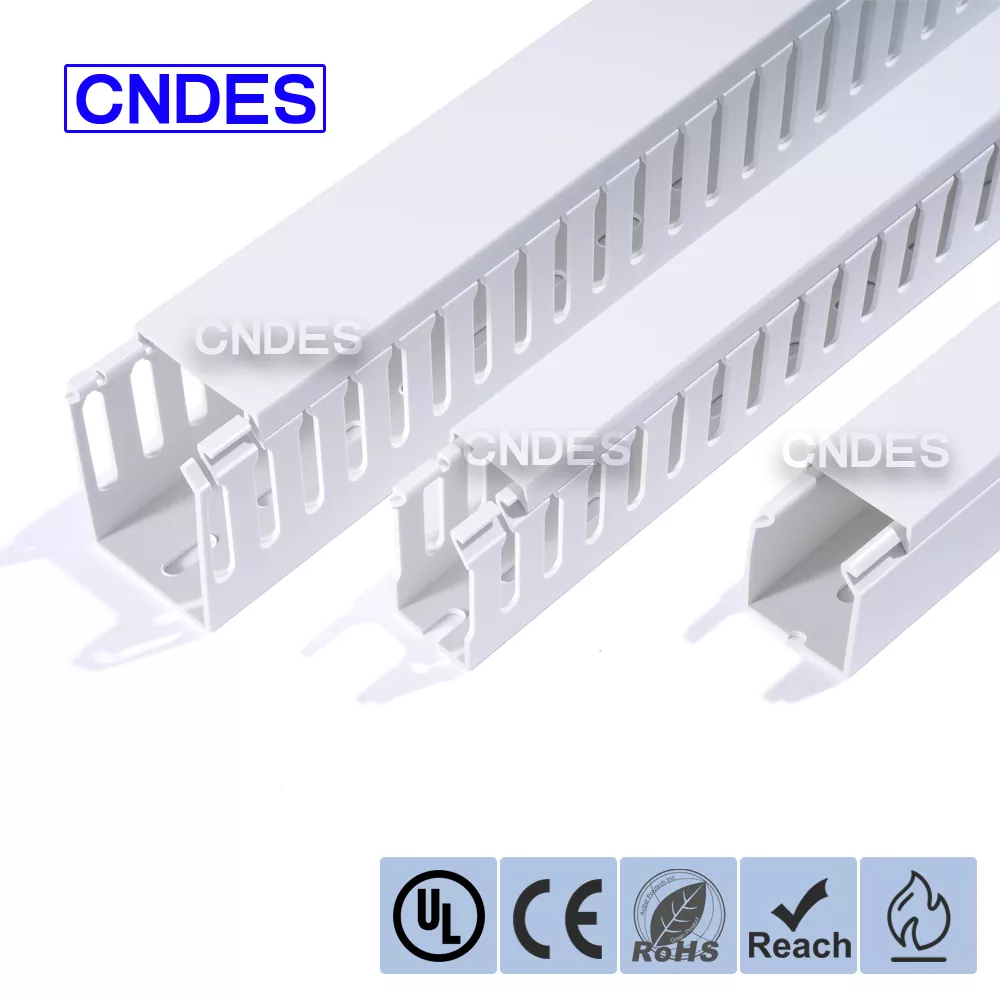

The Customized White Slotted PVC Wiring Ducts produced by our company is defaulted to be silver white, but it can also be customized to be pure white or off-white. We offer slot profiles such as wide slot, narrow slot, close slot, and solid wall for your selection.
Material: PVC
Certificates: UL, CE, RoHS, REACH
Flame-retardant rating: UL94-V0
Color: Gray or other custom colors

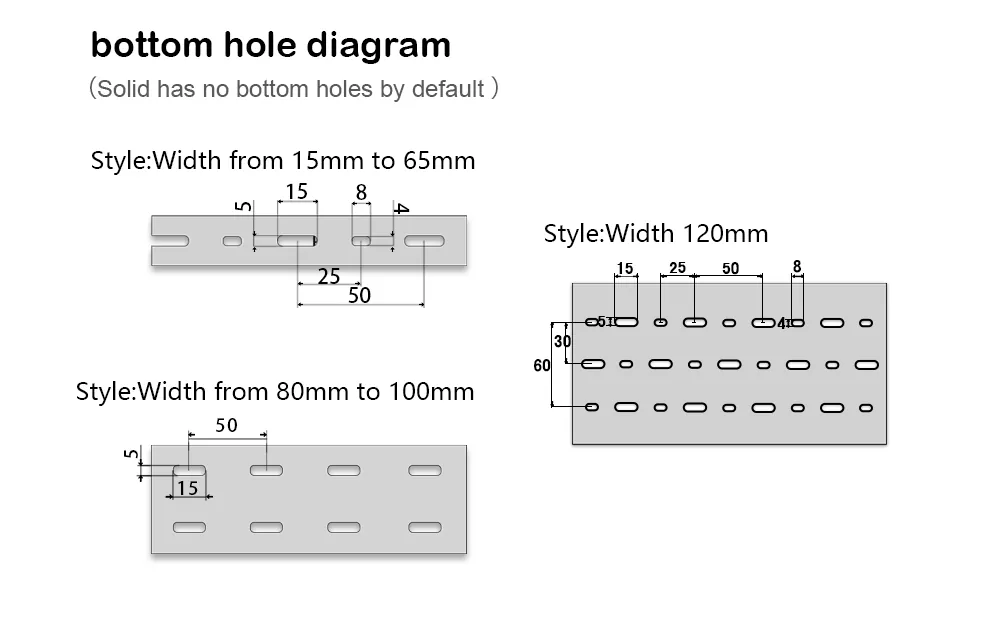

With Bottom Mounting Holes
Standard Length: 2M (Custom lengths are available)
Operating temperature: -40°C up to 70°C
|
H*W mm |
thickness mm |
Package/M |
|
20*15 |
1.1 |
200 |
|
20*20 |
1.1 |
200 |
|
20*25 |
1.1 |
100 |
|
25*20 |
1.1 |
200 |
|
25*25 |
1.2 |
100 |
|
25*50 |
1.3 |
100 |
|
30*15 |
1.2 |
100 |
|
30*20 |
1.25 |
100 |
|
30*25 |
1.25 |
100 |
|
30*30 |
1.3 |
100 |
|
30*35 |
1.3 |
100 |
|
30*40 |
1.4 |
100 |
|
30*50 |
1.4 |
100 |
|
35*25 |
1.4 |
100 |
|
35*30 |
1.4 |
100 |
|
35*35 |
1.4 |
100 |
|
35*40 |
1.45 |
100 |
|
40*25 |
1.45 |
100 |
|
40*30 |
1.45 |
100 |
|
40*35 |
1.45 |
100 |
|
40*40 |
1.5 |
100 |
|
40*60 |
1.6 |
100 |
|
45*25 |
1.4 |
100 |
|
45*33 |
1.4 |
100 |
|
45*45 |
1.5 |
100 |
|
50*25 |
1.5 |
100 |
|
50*30 |
1.5 |
100 |
|
50*35 |
1.5 |
100 |
|
50*40 |
1.5 |
100 |
|
50*45 |
1.55 |
100 |
|
50*50 |
1.6 |
100 |
|
50*55 |
1.6 |
100 |
|
50*60 |
1.7 |
80 |
|
50*80 |
1.8 |
60 |
|
50*100 |
1.8 |
60 |
|
60*25 |
1.5 |
100 |
|
60*30 |
1.5 |
100 |
|
60*35 |
1.6 |
100 |
|
60*40 |
1.6 |
100 |
|
60*45 |
1.6 |
100 |
|
60*50 |
1.7 |
80 |
|
60*60 |
1.8 |
60 |
|
60*80 |
1.9 |
60 |
|
60*100 |
2.0 |
50 |
|
65*25 |
1.6 |
100 |
|
65*33 |
1.6 |
100 |
|
65*45 |
1.65 |
80 |
|
65*65 |
1.65 |
60 |
|
80*25 |
1.8 |
60 |
|
80*30 |
1.8 |
60 |
|
80*35 |
1.8 |
60 |
|
80*40 |
1.8 |
60 |
|
80*45 |
1.8 |
60 |
|
80*50 |
1.8 |
60 |
|
80*55 |
1.8 |
60 |
|
80*60 |
1.85 |
60 |
|
80*80 |
2.0 |
36 |
|
80*100 |
2.0 |
36 |
|
100*33 |
1.9 |
60 |
|
100*40 |
1.9 |
60 |
|
100*50 |
1.9 |
60 |
|
100*60 |
1.95 |
60 |
|
100*80 |
2.0 |
36 |
|
100*100 |
2.2 |
36 |
|
100*120 |
2.3 |
36 |

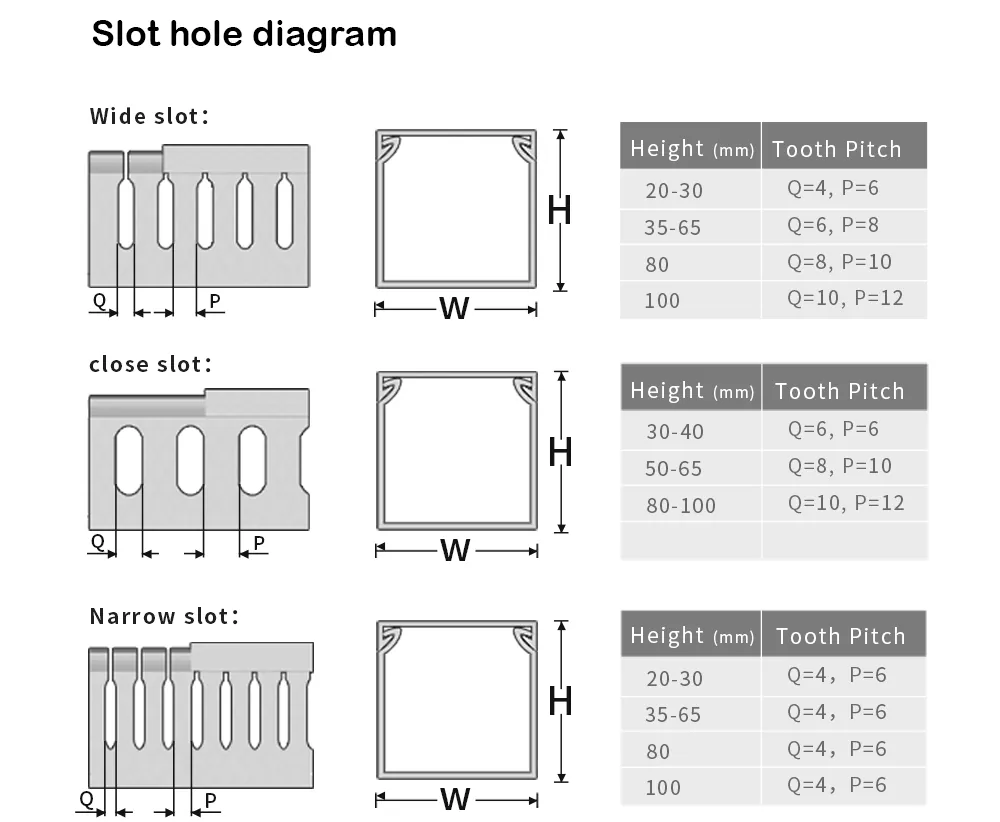

The specifications of wiring ducts are measured in millimeters and expressed as height × width (for example, 80 × 50 mm). Start by measuring the available installation space and the diameter and quantity of your cables. Then choose the appropriate slot profile: a wide slot (8 mm) is ideal for thicker cables, while a narrow slot (4 mm) is better for thinner cables and more organized wiring. For optimal performance and heat dissipation, we recommend keeping the total cable volume within 70% of the duct capacity.
CNDES offers a full range of sizes and slot options to help you select the most suitable Quality White Slotted PVC Wiring Duct for your application.
Most standard sizes of High-Performance White Slotted PVC Wiring Duct are available from stock for fast shipment. For customized dimensions, colors, or slot designs, the typical lead time is 1–3 weeks, depending on order quantity. Our professional customer service team is online in real time to provide a quick quotation, confirm production details, and arrange delivery schedules, ensuring an efficient and worry-free purchasing experience.
Over 20 years as a specialized PVC wiring duct factory in China
Self-developed PVC formulations for consistent color and performance
Strict in-process quality inspections
Stable supply for large and repeat orders
Strong OEM, private-label, and export experience
If you are sourcing a reliable White Slotted PVC Wiring Duct manufacturer or supplier in China, CNDES offers factory-direct pricing, stable quality, and professional service.
