In electrical panels, messy wiring doesn’t just look unprofessional—it can cause maintenance difficulties, overheating, and safety risks. Our Customized 100×60 PVC Duct For Electrical Panels is built to solve these problems by:
1.Grouping multiple cable types into a single, structured channel
2.Reducing cable congestion and improving airflow
3.Making inspection, upgrades, and troubleshooting faster and easier
4.It’s a practical solution widely used by electrical panel manufacturers, OEMs, contractors, and automation system builders.
|
Material |
PVC |
|
Certification |
UL, CE, RoHS, REACH |
|
Installation Temperature |
-40°C up to 70°C |
|
Color |
Gray or other custom colors |
|
Perforated bottom |
With Bottom Mounting Holes |
|
Package |
60m |
|
thickness |
2.0mm |
|
Side hole |
Wide; narrow; solid wall; close slot |

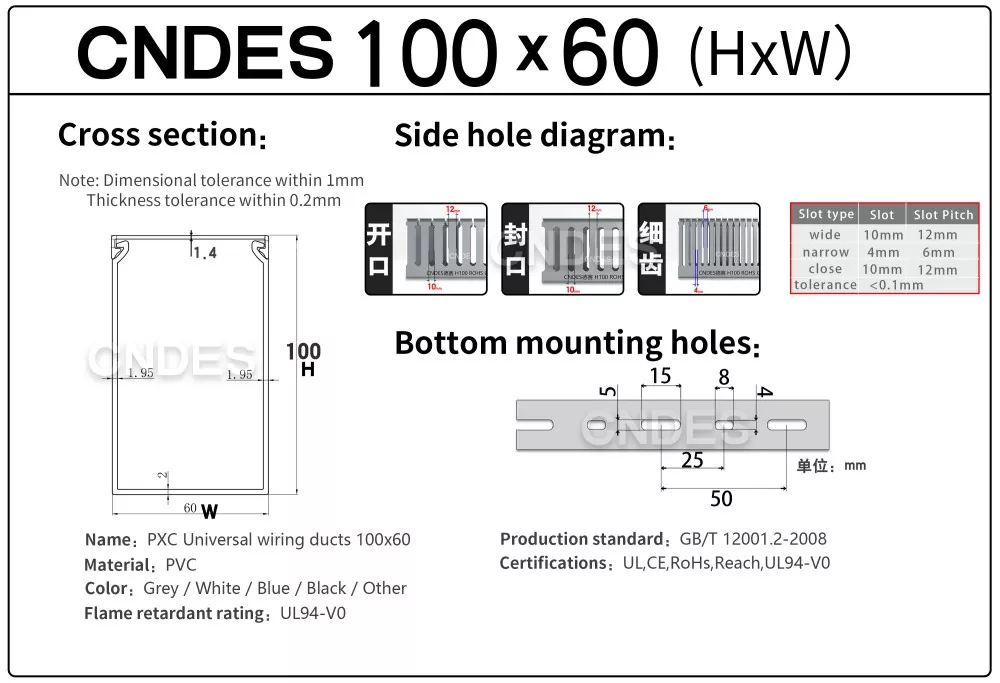

High-Capacity – 60mm width * 100mm depth accommodates large cable bundles.
Flame-Retardant Material - UL94-V0 rated PVC material, self-extinguishing and insulation-grade for enhanced electrical safety.
Tool-Free - Snap-on cover allows quick installation, re-routing, and inspection without screws or tools.
Precision Slot- Precision Grooving – The Quality 100×60 PVC Duct For Electrical Panels feature a uniform groove design, allowing cables to exit cleanly from any position; custom hole patterns are available as an option..
Durable & Chemical-Resistant – Withstands oils, mild acids, and humidity for long-term industrial use.
We have all specifications of wire ducts（cable tray）. If you need other specifications, please feel free to contact us!
