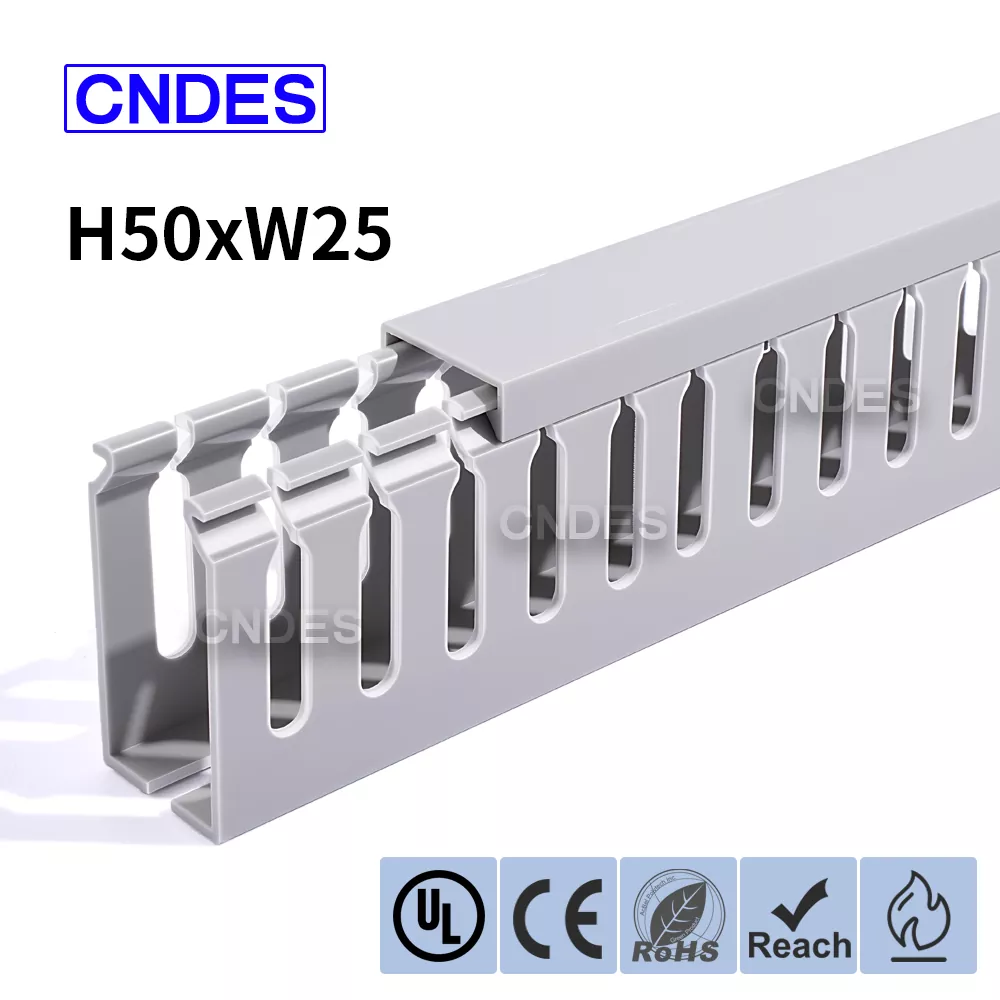

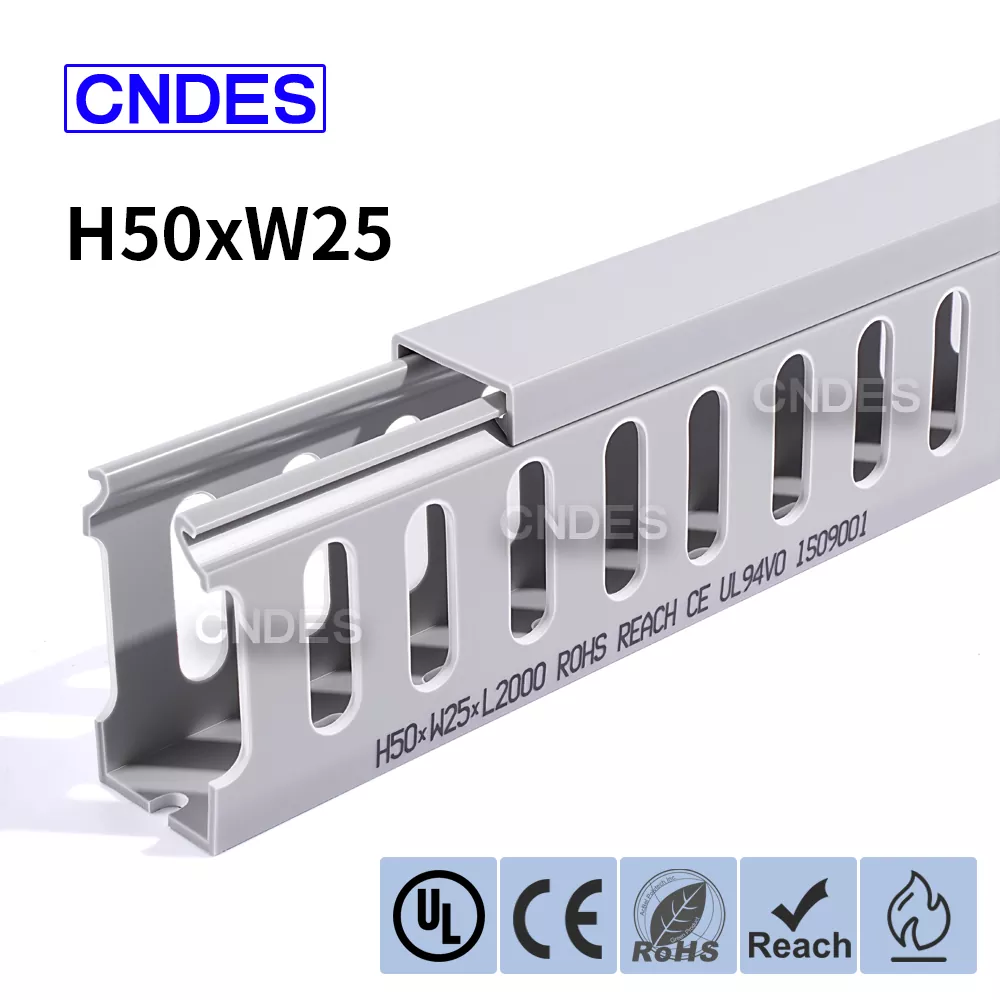

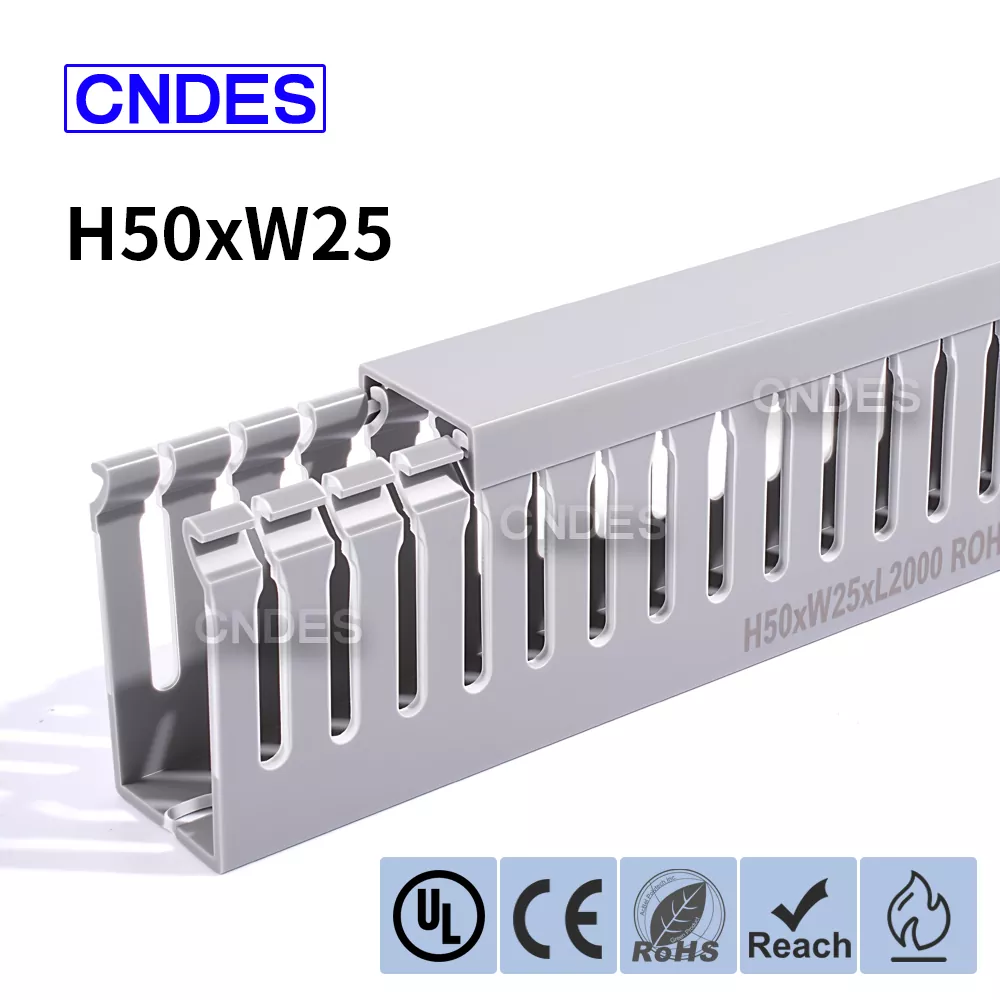

Looking for a simple, reliable way to organize cables inside your electrical cabinets or industrial panels? The Customized 50×25mm Slotted PVC Electrical Cabinet Duct from CNDES is designed to keep your wiring neat, accessible, and safe.
This duct is perfect for low-to-medium density wiring, where space is tight but organization is critical. As a trusted PVC wiring duct manufacturer and supplier in China, CNDES ensures every duct delivers consistent quality, flame-retardant protection, and easy installation for both small and large projects.

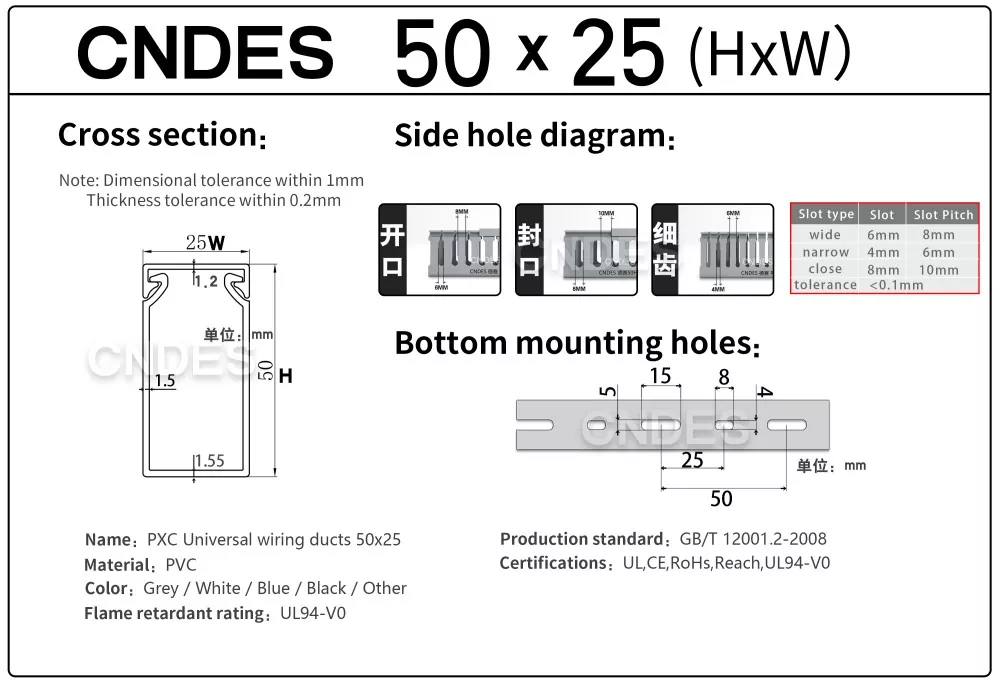

The specification of 50 * 25 is expressed as a trunking with a height of 50mm and a width of 25mm.
|
Material |
PVC |
|
Certification |
UL, CE, RoHS, REACH |
|
Installation Temperture |
-40°C up to70°C |
|
Color |
Gray or other custom colors |
|
Perforated bottom |
With Bottom Mounting Holes |
|
Standard |
EN50085-1,EN50085-2-3,UL1565,ISO9001 |
|
Perforation selection |
wide slot, narrow slot, close slot, solid wall.
|
|
Package |
100m |
|
thickness |
1.5mm |
Made from high-quality PVC raw materials, environmentally friendly, flame-retardant, and possessing high-strength physical properties. You can rest assured to buy CNDES Slotted PVC Electrical Cabinet Duct from our factory.
1. Electrical Control Panels
Ideal for PLC wiring, terminal blocks, and relays.
2. Industrial Equipment
Keeps sensors, actuators, and control lines neat, organized, and reliable.
3. Data and Communication Cabinets
Organizes loose patch cords, network cables, or auxiliary cables.
4. OEM Machinery
The Quality 50×25mm Slotted PVC Electrical Cabinet Duct provides a professional wiring layout for compact machines.
Custom slot layouts or spacing
Special colors to match panel aesthetics
Anti-UV or anti-static formulations
Logo printing and private-label packaging
Custom lengths for project-specific needs
Want to know more? Welcome to contact us！
